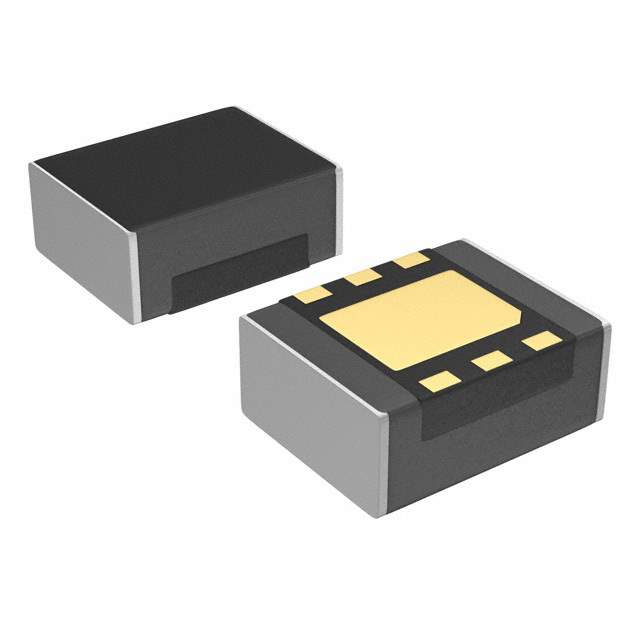

Same model may have multiple batches, images only for reference.

XCL220B253FR-G

Name: XCL220B253FR-G
Brand: Torex Semiconductor Ltd
SKU: 1340503
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	XCL220B253FR-G
Manufacturer	Torex Semiconductor Ltd
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 2.5V / Non-Isolated PoL Module DC DC Converter 1 Output 2.5V 1A 2.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Torex Semiconductor Ltd
Series	XCL220
Package	Tape & Reel
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	2.5V
Current - Output (Max)	1A
Applications	ITE (Commercial)
Features	OCP, OTP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	93%
Mounting Type	Surface Mount
Package / Case	8-SMD
Size / Dimension	0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm)
Control Features	Enable, Active High
Base Product Number	XCL220
Standard Package	3,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1340503-XCL220B253FR-G
Ultra Librarian 3D Model	Ultra Librarian XCL220B253FR-G CAD Model

Alternative Products

Description

The XCL220B253FR-G is a non-isolated PoL module DC-DC converter that operates with an input voltage range of 2.5V to 5.5V.

Applications: Board Mount
Voltage - Input (Min): 2.5V
Voltage - Input (Max): 5.5V
Current - Output: 1A
Voltage - Output: 2.5V
Features: Over Current Protection, Over Temperature Protection, Short Circuit Protection, Under Voltage Lockout
Control Features: Enable, Active High
Efficiency: 93%
Size / Dimension: 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm)
Package / Case: 8-SMD
