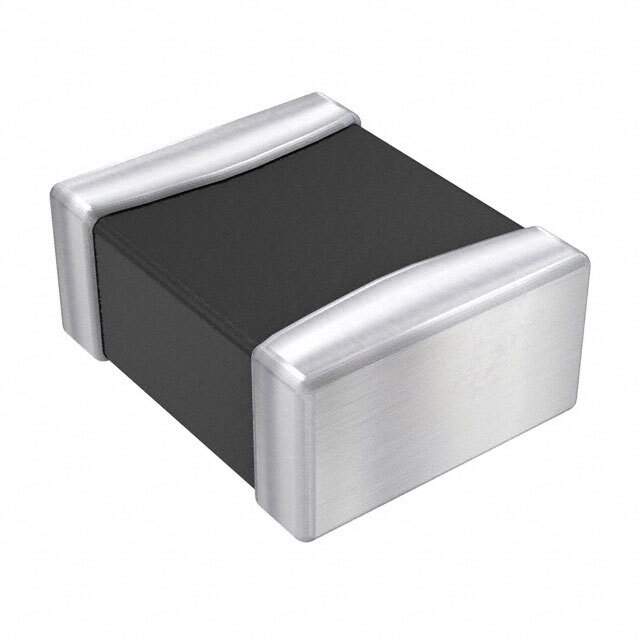

The DFE201612R-H-R47M is a molded power inductor manufactured by Toko America Inc. It is designed for applications requiring a compact, low-profile inductor with good current handling capability.

Applications:

• DC-DC converters
• Power supplies for portable devices
• Voltage regulators
• Filtering circuits
• Smartphones and tablets

Features:

• Molded construction for high reliability
• Low DC resistance (DCR) for high efficiency
• Compact size (2.0 x 1.6 x 1.2 mm)
• High current carrying capacity for its size
• RoHS compliant and halogen-free

Benefits:

• Provides stable and reliable performance
• Improves power supply efficiency
• Saves board space in compact devices
• Handles high current loads without saturation
• Meets environmental regulations

Specifications:

The DFE201612R-H-R47M has an inductance value of 0.47uH (0.47 μH). The tolerance is typically ±20%. The saturation current is typically around 2.5A to 3.0A. The DC resistance (DCR) is typically less than 0.06 ohms. The operating temperature range is typically -40°C to +125°C. The self-resonant frequency (SRF) is typically in the MHz range. The inductor features a ferrite core material.

These inductors are available in tape and reel packaging for automated pick and place assembly. The terminations are designed for reflow soldering processes.
