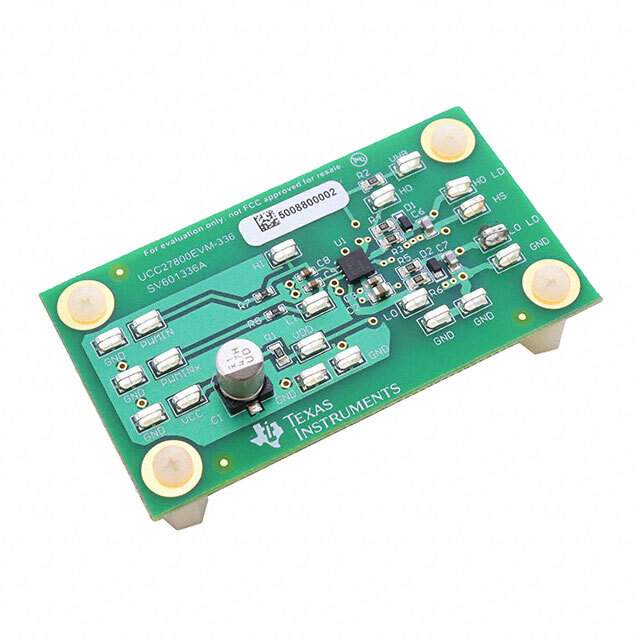

The UCC27800EVM-336 from Texas Instruments is a state-of-the-art evaluation module designed for testing the performance and capabilities of the UCC27800, a half-bridge gate driver with high-current drive capability. This evaluation module is an essential tool for engineers and developers looking to explore the features and integrate the UCC27800 gate driver into their power management designs.

Key Features

• Integrated Circuit: The module is built around the UCC27800 half-bridge gate driver, which is capable of driving N-channel MOSFETs or IGBTs in a high-side and low-side configuration.
• High Current Drive: Capable of delivering peak output currents of up to 4 A, the UCC27800EVM-336 can effectively drive power transistors in high-power applications.
• Bootstrap Circuitry: The evaluation module includes bootstrap circuitry necessary for the high-side gate drive, providing a simple and efficient solution for high-voltage applications.
• Protection Features: The UCC27800 incorporates a range of protection features such as undervoltage lockout, overcurrent protection, and thermal shutdown, all of which are testable with this EVM.
• Robust Design: Designed with high-quality components, the EVM ensures reliable operation and durability for extensive testing scenarios.

Applications

The UCC27800EVM-336 is suitable for a wide range of applications, including but not limited to:

• DC/DC converters
• Motor drives
• Inverters
• Power supplies
• Class D audio amplifiers

Easy to Use

The evaluation module is designed for ease of use, allowing for quick setup and integration into existing test circuits. It comes with comprehensive documentation, including a user guide and schematic diagrams, to facilitate a seamless evaluation experience.

Support and Resources

Texas Instruments provides extensive support and resources for the UCC27800EVM-336, including detailed datasheets, application notes, and technical support from TI's expert engineers. Customers can access these resources on the Texas Instruments website to accelerate development and optimize their use of the evaluation module.
