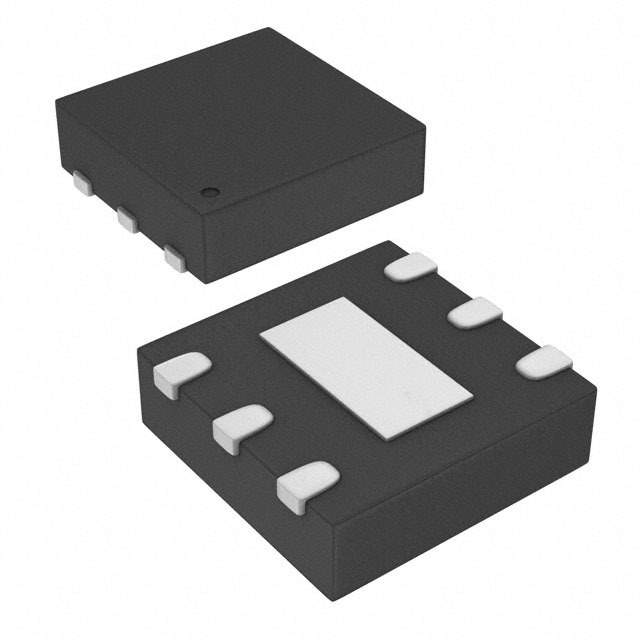

Introducing the UCC27512MDRSTEP Driver IC from Texas Instruments

Experience next-level performance with the UCC27512MDRSTEP, a state-of-the-art gate driver integrated circuit (IC) designed and manufactured by the renowned Texas Instruments. This high-speed, low-side gate driver device is specifically engineered to drive MOSFETs and IGBTs with utmost efficiency and precision. The UCC27512MDRSTEP is a perfect solution for a wide array of applications, including motor control, power supplies, and converters that demand reliable switching performance.

Key Features

• Robust Output Drive: With an impressive source and sink current of 4 A and 8 A respectively, the UCC27512MDRSTEP provides a strong drive to reduce switching times, thereby enhancing the performance of your power stage.
• High-Speed Operation: The device is capable of operating at high frequencies, thanks to its fast propagation delays and rise/fall times, ensuring swift and efficient switching.
• Single Supply Voltage: It operates on a single supply voltage ranging from 4.5 V to 18 V, offering flexibility and ease of use in various circuit designs.
• Input Thresholds: The IC features TTL and CMOS compatible input thresholds, which make it versatile for interfacing with a variety of control circuits.
• Output Configuration: The output stage is designed to offer a rail-to-rail drive capability for the gate of the power switch, ensuring full enhancement during the on-state.

Enhanced Protection Features

The UCC27512MDRSTEP comes with built-in protection features to safeguard your system. These include:

• Negative voltage handling on the input and output pins for robust operation during high dv/dt phases.
• An industry-standard 8-pin SOIC package that ensures a compact footprint while providing excellent thermal performance.

Application Versatility

Whether you're designing an AC-DC power supply, a DC-DC converter, or a motor drive, the UCC27512MDRSTEP offers the reliability and performance you need. Its compatibility with pulse-width modulation (PWM) controllers and other digital control ICs makes it an ideal choice for advanced power management systems.

Choose the UCC27512MDRSTEP for your next project and leverage the quality and expertise of Texas Instruments to enhance your power design's efficiency and robustness.
