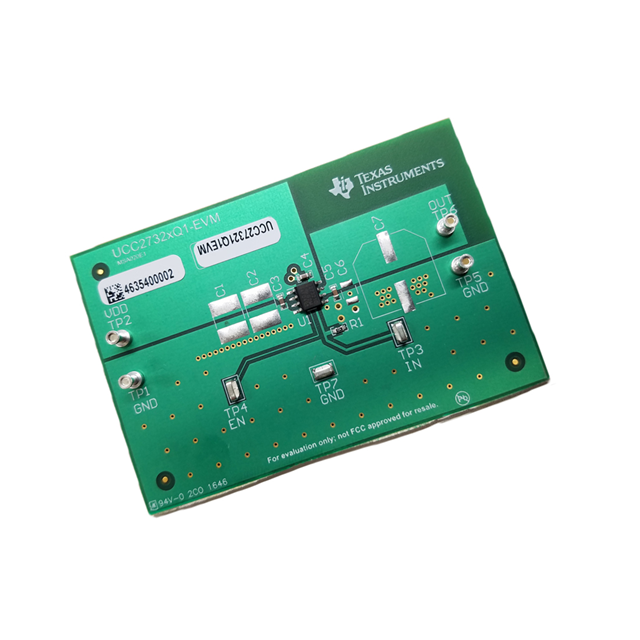

Texas Instruments UCC27321Q1EVM Evaluation Module

The UCC27321Q1EVM from Texas Instruments is a high-performance evaluation module designed for testing and prototyping applications using the UCC27321Q1 high-speed, high-current gate driver. This evaluation module is an essential tool for engineers and designers who are looking to explore the capabilities of the UCC27321Q1 driver in their power management and switching applications.

The UCC27321Q1 gate driver is capable of delivering peak currents up to 9A with an efficient power conversion, making it ideal for driving power MOSFETs, IGBTs, and other high-power switching devices. It features a robust output drive with low propagation delays and reduced rise and fall times, which are critical for high-frequency switching applications.

The UCC27321Q1EVM is equipped with a range of features that provide a flexible and user-friendly platform for evaluating the performance of the UCC27321Q1 driver. It includes a test point for every pin of the driver, enabling easy access for measurement and testing purposes. Additionally, the module comes with jumpers and connectors that allow for quick configuration and interfacing with external test equipment.

The evaluation module's layout is optimized to minimize parasitic inductances and capacitances, ensuring accurate and reliable operation under high-speed switching conditions. This makes it an ideal choice for applications in automotive, industrial, and telecommunications sectors where high efficiency and reliability are paramount.

Texas Instruments provides comprehensive support for the UCC27321Q1EVM, including detailed documentation, reference designs, and application notes. This support helps users to rapidly integrate the evaluation module into their design projects and to troubleshoot any issues that may arise during development.

Overall, the UCC27321Q1EVM from Texas Instruments is a versatile and powerful tool for any engineer looking to harness the performance of the UCC27321Q1 gate driver in their power conversion and switching applications.
