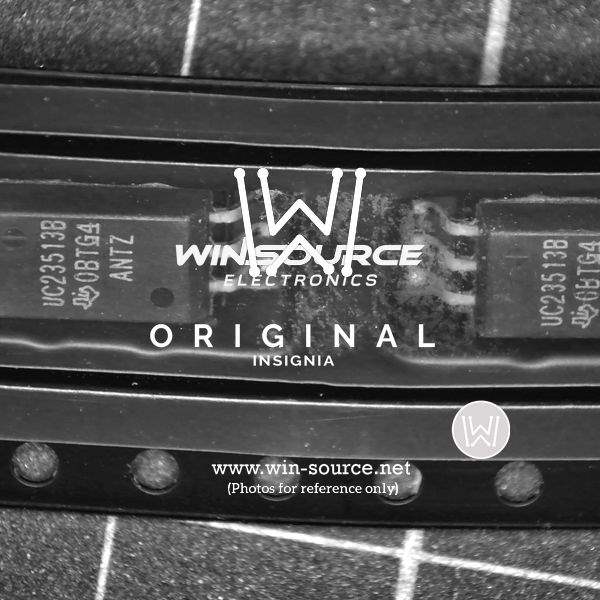

The UCC23513BDWYR is a state-of-the-art isolated gate driver designed by Texas Instruments, renowned for its robust performance in driving power switches. This device is an optimal solution for driving IGBTs, MOSFETs, SiC MOSFETs, and GaN HEMTs, catering to a broad range of applications including motor controls, industrial inverters, and power supplies.

Key Features

• Isolation Rating: With a 3 kVRMS isolation rating for 1 minute per UL 1577, the UCC23513BDWYR provides safe and reliable electrical isolation between the low-voltage and high-voltage domains, ensuring user safety and equipment protection.
• High Drive Strength: The device boasts a strong drive strength with 4 A source and 6 A sink peak output currents, enabling it to drive power switches efficiently and effectively.
• Fast Propagation Delays: The UCC23513BDWYR features low propagation delays and tight channel-to-channel skew, which allows for precise control and timing of the power switching, improving overall system performance.
• Wide Operating Temperature Range: It is designed to operate over a wide temperature range from -40°C to +125°C, making it suitable for harsh industrial environments.
• Robust EMC Performance: The device features CMTI greater than 100 V/ns, ensuring that the gate driver is immune to the high dv/dt transients often found in power electronic systems, thus reducing the risk of erroneous gate driving.

Applications

Due to its high isolation and robust performance, the UCC23513BDWYR is ideal for a variety of applications, including:

• Motor drives and servo controls
• Renewable energy inverters
• Power supplies and converters
• Industrial automation and control systems

Package and Reliability

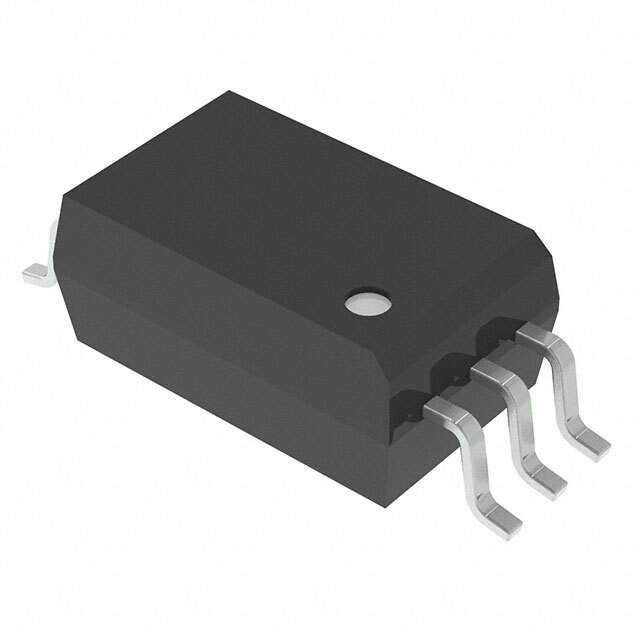

Encased in a compact 8-pin SOIC package, the UCC23513BDWYR is designed for space-constrained applications. The device also incorporates fail-safe features, such as UVLO (Under Voltage Lock Out), which ensures the device operates only when the supply voltage is within its specified range, enhancing system reliability and safety.

The UCC23513BDWYR from Texas Instruments represents a blend of performance, reliability, and versatility, making it an excellent choice for designers looking to optimize their power systems with an advanced isolated gate driving solution.
