TUSB544RNQT USB Type-C Alt Mode Redriver

The TUSB544RNQT from Texas Instruments is a high-performance, adaptive USB Type-C Alternate Mode redriver and signal conditioner designed to enhance the signal quality of USB data and video streams. This advanced component is a crucial solution for ensuring signal integrity in various applications, such as laptops, desktops, docking stations, and monitors that support USB Type-C interfaces with alternate modes.

Key Features:

• USB Type-C and USB Power Delivery (PD) Support: The TUSB544RNQT is fully compliant with USB Type-C and USB PD standards, allowing for seamless integration with the latest devices and accessories.
• High-Speed Data Rates: Capable of supporting data rates up to 10 Gbps for USB 3.2 Gen 2, ensuring fast and efficient data transfer.
• Alternate Mode Functionality: It supports multiple alternate modes such as DisplayPort and Thunderbolt 3, providing the flexibility to handle various types of data and video signals.
• Signal Conditioning: Integrated advanced signal conditioning features such as equalization, gain, and de-emphasis, which can be programmed to optimize performance over various physical media.
• Low Power Consumption: Designed with power efficiency in mind, the TUSB544RNQT features low active and standby power consumption, contributing to the overall energy efficiency of the end application.

Applications:

The TUSB544RNQT is well-suited for a wide range of applications that require high-speed data and video transfer capabilities. These include:

• USB Type-C enabled laptops and desktops
• Docking stations
• Monitors and displays with USB Type-C interfaces
• USB Type-C hubs and accessories

Technical Specifications:

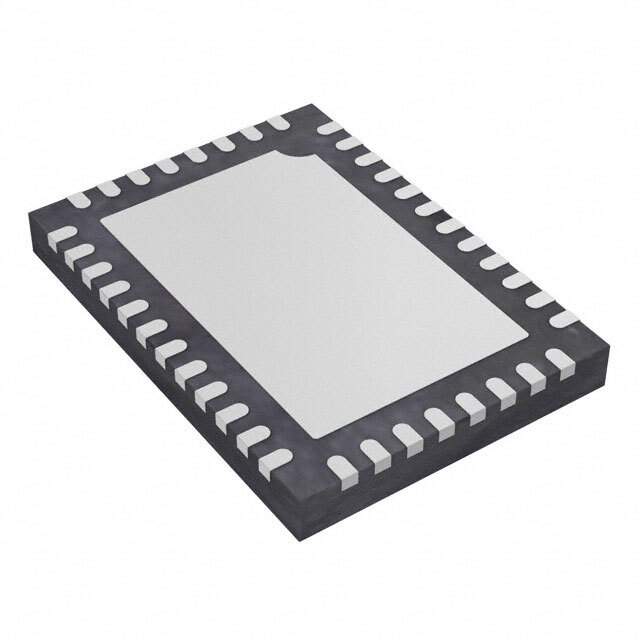

• Package: 42-Pin QFN
• Operating Temperature Range: -40°C to 85°C
• Supply Voltage: 3.3V

With its robust feature set, the TUSB544RNQT is an essential component for manufacturers and designers looking to enhance the performance and reliability of their USB Type-C products. Texas Instruments' commitment to quality ensures that this redriver will meet the rigorous demands of high-speed data and video applications.
