The TUSB212RWBT is a high-performance signal conditioner designed by Texas Instruments to enhance the signal quality of USB 2.0 data lines. This device is particularly useful in applications where signal integrity may be compromised due to long cable lengths, inadequate board designs, or rough environmental conditions.

Key Features

• Signal Quality Enhancement: The TUSB212RWBT employs adaptive equalization to optimize the signal quality and speed of USB 2.0 interfaces, ensuring reliable communication over a variety of physical mediums.
• Compatibility: This device is compatible with both High-Speed (480 Mbps) and Full-Speed (12 Mbps) USB 2.0 signals, providing versatility for different use cases.
• Power Efficiency: With its low-power operation, the TUSB212RWBT is designed for power-sensitive applications, minimizing the impact on the overall power budget of the system.
• Integrated ESD Protection: The conditioner includes built-in Electrostatic Discharge (ESD) protection circuitry, safeguarding the USB data lines from potential damage due to static discharges.

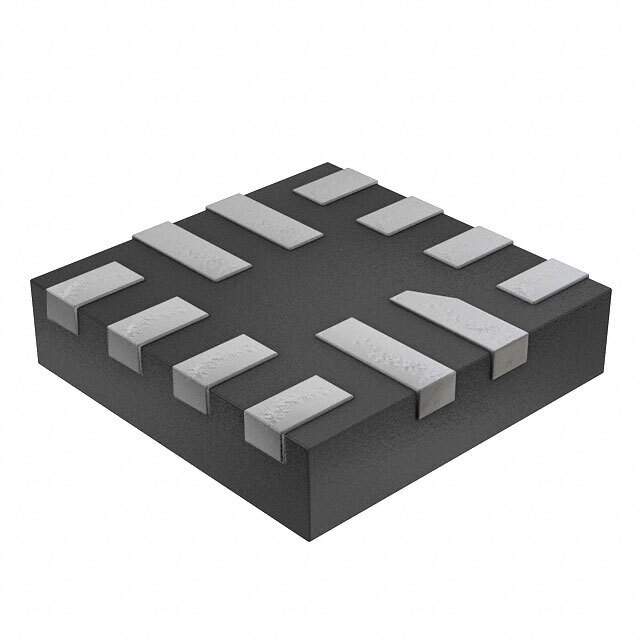

• Small Form Factor: Housed in a compact WQFN package, the TUSB212RWBT is ideal for space-constrained applications, without compromising performance.

Applications

The TUSB212RWBT is designed to be used in a variety of applications, including but not limited to:

• Consumer Electronics
• Portable Devices
• Docking Stations
• USB Hubs and Peripherals
• Desktop and Laptop Computers

Technical Specifications

The TUSB212RWBT operates over a temperature range of -40°C to 85°C and requires a single 3.3V supply for operation. It is available in a RoHS-compliant, 10-pin WQFN package, measuring just 2mm x 2mm.

Conclusion

With its advanced features and robust design, the TUSB212RWBT from Texas Instruments is an excellent choice for any application requiring enhanced USB 2.0 signal integrity. Its compact size, power efficiency, and compatibility with high-speed USB standards make it a versatile and essential component in modern electronic designs.
