Overview of Texas Instruments TUSB1044RNQR

The TUSB1044RNQR is a high-performance, adaptive USB Type-C™ multi-protocol redriver designed by Texas Instruments to enhance signal quality in a variety of applications. This versatile device supports USB 3.2 Gen 1 (5 Gbps) and DisplayPort 1.4 (HBR3) signals, making it an ideal solution for improving the integrity and reach of high-speed data and video connections.

Key Features

• USB 3.2 Gen 1 Support: The TUSB1044RNQR is capable of redriving signals at speeds up to 5 Gbps, ensuring compatibility with the latest USB standards for fast data transfer.
• DisplayPort 1.4 Support: With support for DisplayPort HBR3, this device can handle bandwidth-intensive video signals, providing a clear and stable connection for high-resolution displays.
• Adaptive Equalization: The redriver includes adaptive equalization technology, which automatically adjusts to optimize signal quality over various cable lengths and types.
• Integrated De-Emphasis: By incorporating de-emphasis functionality, the TUSB1044RNQR can compensate for signal loss and reduce bit error rates, enhancing overall performance.

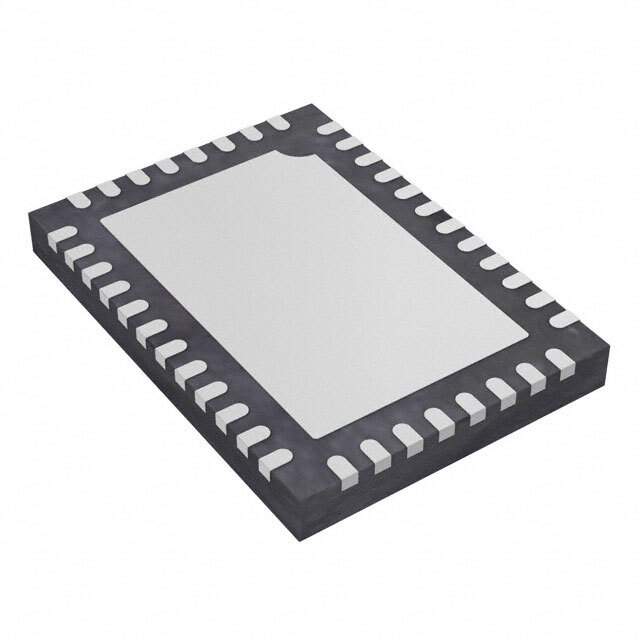

• Small Form Factor: Housed in a compact QFN package, this redriver can fit into space-constrained designs, making it suitable for portable and embedded systems.

Applications

The versatility of the TUSB1044RNQR makes it suitable for a variety of high-speed signal applications, including:

• Docking stations
• USB Type-C hubs and monitors
• Virtual reality headsets
• Professional video equipment
• Portable computing devices

Summary

Whether it's for personal computing, professional AV setups, or cutting-edge VR technology, the Texas Instruments TUSB1044RNQR provides a reliable solution for enhancing USB and DisplayPort signal integrity. Its advanced features ensure that it can meet the demands of the latest high-speed interfaces, making it a crucial component in modern electronic designs.
