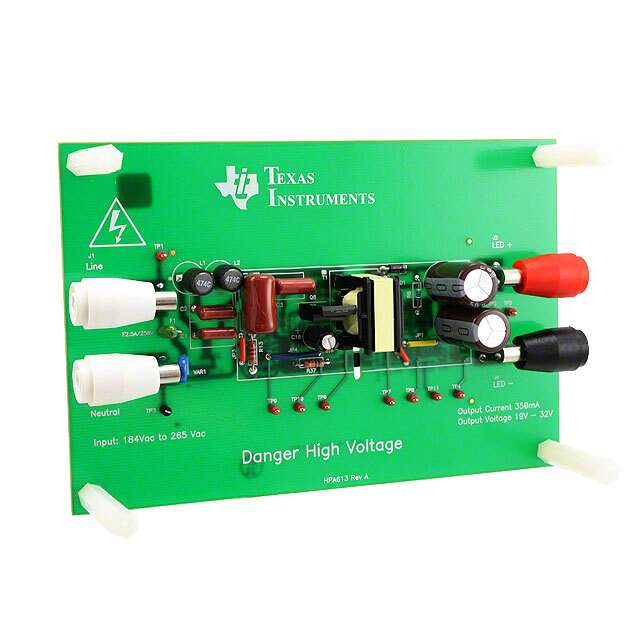

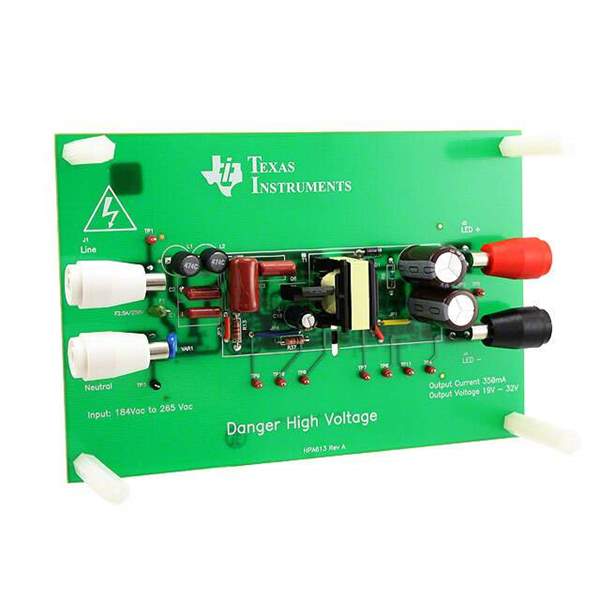

TPS92210EVM-613 Evaluation Module by Texas Instruments

The TPS92210EVM-613 is a meticulously designed evaluation module that showcases the capabilities of the TPS92210, a highly efficient LED driver integrated circuit developed by Texas Instruments. This evaluation module is engineered to facilitate the testing and development of lighting solutions that employ the TPS92210 IC, providing designers with a robust platform to create innovative, energy-saving lighting applications.

Key Features of the TPS92210EVM-613

• Integrated PWM Dimming: The module supports pulse-width modulation dimming, enabling precise control over the brightness levels of the connected LEDs.
• Adjustable Output Current: Users can easily adjust the output current to suit the requirements of various LED configurations, ensuring optimal performance and flexibility.
• High-Efficiency Operation: The TPS92210 IC is designed for high efficiency, reducing energy consumption and heat generation for LED lighting solutions.
• Thermal Protection: The evaluation module includes features for thermal protection, safeguarding the system from overheating and enhancing the longevity of the LEDs.
• Easy-to-Use Interface: With a user-friendly interface, the TPS92210EVM-613 allows for quick and straightforward evaluation of the TPS92210 IC's features.

Applications

The TPS92210EVM-613 is ideal for a wide range of lighting applications, including:

• Residential and commercial lighting systems
• Architectural lighting
• Street and area lighting
• Portable and emergency lighting

Technical Specifications

The TPS92210EVM-613 operates over a wide input voltage range, accommodating various power supply standards. The module's layout is optimized for minimal EMI emissions, and it is equipped with numerous test points for convenient measurement and analysis.

For detailed technical specifications, application notes, and additional resources, interested parties are encouraged to visit the Texas Instruments website or contact their local sales representative.
