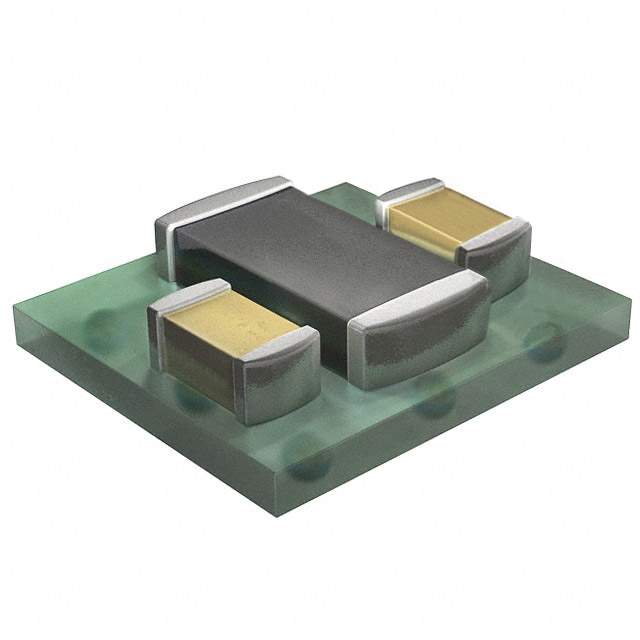

Product Overview: Texas Instruments TPS82697SIPT

The Texas Instruments TPS82697SIPT is a highly integrated, efficient, and versatile power management solution designed to meet the demanding requirements of portable and space-constrained electronic devices. This microSiP™ step-down converter module is part of TI's extensive range of power management integrated circuits, renowned for their reliability and performance.

Key Features

• High Efficiency: With its advanced step-down converter technology, the TPS82697SIPT achieves high power conversion efficiency, which is crucial for maximizing battery life in portable applications.
• Compact Design: The microSiP™ module integrates the inductor and passives onto a single package, resulting in a compact footprint that is ideal for space-constrained designs.
• Adjustable Output Voltage: It offers a versatile output voltage range that can be configured to meet the specific needs of various applications, ensuring broad compatibility with different system requirements.
• Low Quiescent Current: The device features low quiescent current, which minimizes power consumption during light load conditions, further extending battery life.
• Fast Transient Response: The TPS82697SIPT is engineered to provide a fast transient response, maintaining stable output voltage during sudden changes in load, which is essential for sensitive electronic components.
• Power Save Mode: It includes a power save mode that automatically switches between pulse-width modulation (PWM) and pulse-frequency modulation (PFM) modes, optimizing efficiency across the entire load range.

Applications

The TPS82697SIPT is suitable for a variety of applications, including but not limited to:

• Smartphones and tablets
• Wireless power modules
• Portable media players
• Wearable technology
• Internet of Things (IoT) devices

Technical Specifications

With an input voltage range of 2.3V to 4.8V, the TPS82697SIPT supports a wide array of battery technologies and configurations. The module delivers a fixed output voltage, which is factory-programmed and available in various options to accommodate different system voltages. Its peak efficiency reaches up to 90%, and it is capable of delivering up to 600mA of output current, making it a robust choice for powering modern electronic devices.

The TPS82697SIPT is not just a testament to Texas Instruments' commitment to innovation but also a practical solution for designers seeking to optimize their power management systems with minimal design complexity and maximum efficiency.
