TPS63001DRCRG4 - High Efficiency Single Inductor Buck-Boost Converter

The TPS63001DRCRG4 is a highly efficient, compact, single inductor buck-boost converter from Texas Instruments. Designed to manage a wide input voltage range, this converter is capable of delivering a stable output voltage even when the input voltage fluctuates above or below the output voltage. This feature makes it an ideal choice for multi-cell battery-powered applications, as well as systems that are powered by unpredictable sources such as solar cells.

With its high efficiency across a wide load current range, the TPS63001DRCRG4 is optimized for battery life extension. The device seamlessly transitions between step-down and step-up modes, ensuring efficient operation whether it is providing a higher or lower voltage than the input. This adaptability is crucial for maintaining performance in portable and variable power supply applications.

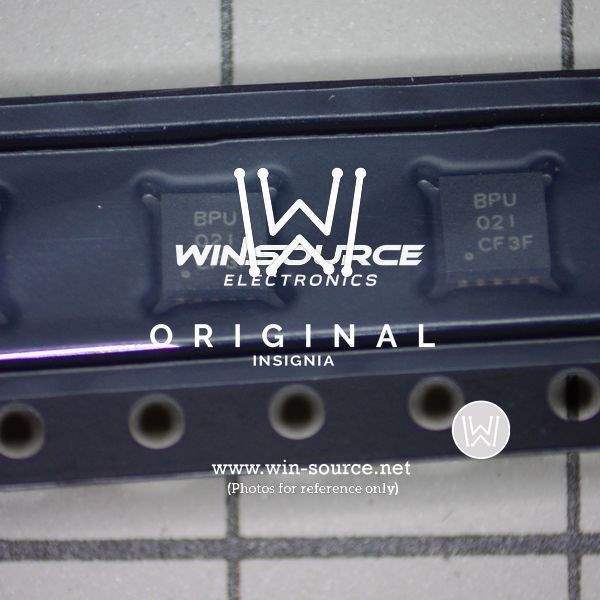

The TPS63001DRCRG4 comes in a small 3x3 mm QFN package, which allows for a compact footprint on the PCB. Its technical specifications include a 1.8V to 5.5V input voltage range, a 1.2V to 5.5V adjustable output voltage range, and a maximum output current of 1.5A in buck mode and 1A in boost mode. It also features a 2.5MHz fixed switching frequency, which minimizes the size of external components.

Additional features of the TPS63001DRCRG4 include over-temperature and over-current protection, which safeguard the device and the system against abnormal operating conditions. The Power Save Mode enhances efficiency at low output power levels, and the device has a low quiescent current.

As a versatile power solution, the TPS63001DRCRG4 is suitable for a wide array of applications, including wireless handsets, audio players, and other portable devices where efficient power conversion is critical. With its robust feature set and Texas Instruments' commitment to quality, this buck-boost converter is an excellent choice for designers looking to optimize power management in their next project.
