Overview of TPS3702CX50QDDCRQ1

The TPS3702CX50QDDCRQ1 is a high-precision window voltage detector designed and manufactured by Texas Instruments, tailored for the demanding requirements of automotive and industrial applications. This advanced monitoring IC is ideal for systems that require a critical level of voltage supervision to ensure reliable operation under various conditions.

Key Features

• Wide Supply Voltage Range: The device supports a broad range of supply voltages, making it versatile for different types of circuit architectures.
• Dual Window Comparator: It features two independent voltage threshold detectors, enabling the monitoring of both overvoltage and undervoltage conditions simultaneously.
• High Accuracy: With a precision threshold accuracy of ±0.5%, the TPS3702CX50QDDCRQ1 ensures tight control over the voltage levels, which is crucial for sensitive electronic components.
• Low Quiescent Current: The device boasts a low current consumption, which is beneficial for power-sensitive applications.
• Adjustable Thresholds: Users can set the voltage thresholds according to their specific requirements, offering flexibility in various use cases.
• Automotive Qualified: Being AEC-Q100 qualified, this voltage detector is suitable for automotive applications that require high reliability and performance under harsh conditions.

Applications

The TPS3702CX50QDDCRQ1 is commonly used in a wide array of applications that include but are not limited to:

• Automotive systems such as Engine Control Units (ECUs), Advanced Driver Assistance Systems (ADAS), and infotainment systems.
• Industrial equipment requiring precise voltage monitoring like PLCs and factory automation systems.
• Power management modules that need to maintain voltage within specified limits to ensure the safety and longevity of electronic components.

Package and Quality

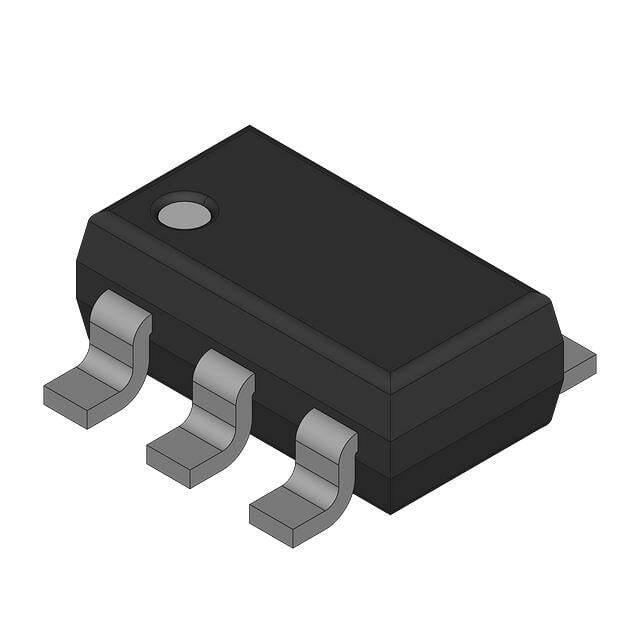

The device comes in a compact, surface-mountable SOT-23 package, which is designed to occupy minimal space on a printed circuit board. Its robust design ensures that it can withstand the rigorous conditions often encountered in automotive and industrial environments. Additionally, the TPS3702CX50QDDCRQ1 meets the stringent quality standards set by Texas Instruments, reflecting its commitment to delivering high-quality and dependable products.
