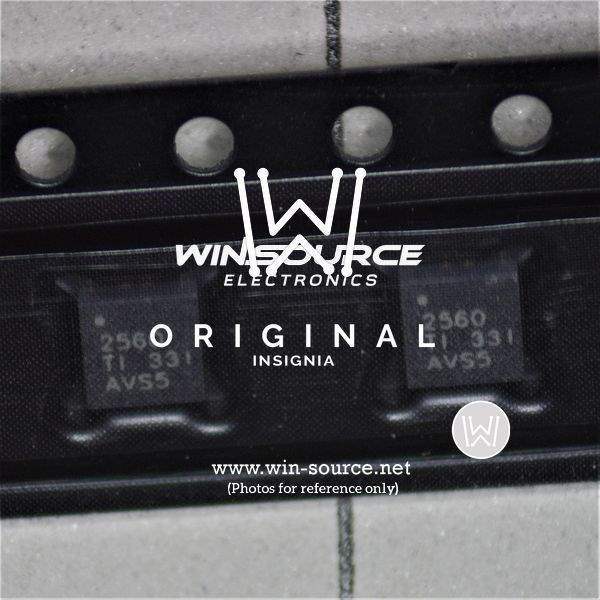

Product Overview: TPS2560DRCT by Texas Instruments

The TPS2560DRCT, a state-of-the-art dual channel power distribution switch from Texas Instruments, is designed to enhance the performance and reliability of USB and other hot-swap applications. This compact, integrated circuit is engineered to provide precision current limiting to protect the host device against both over-current and short-circuit conditions.

Key Features

• Adjustable Current-Limit Thresholds: Users can tailor the current limit thresholds to meet specific system requirements, ensuring flexible and optimized performance.
• Accurate Overcurrent Protection: The TPS2560DRCT offers a fast response time to overcurrent events, minimizing the risk to downstream components.
• Dual Channel Operation: With two independent channels, this device can manage multiple loads, increasing system utility and efficiency.
• Reverse Voltage Protection: The power switch is safeguarded against reverse voltage, which can prevent potential damage to the circuit.

Applications

The versatility of the TPS2560DRCT makes it suitable for a wide range of applications, including:

• USB hubs, docks, and ports
• Peripheral power management
• Hot-swap power supplies
• Industrial and automotive applications

Technical Specifications

• Package: The device comes in a compact 10-pin VSON package, ideal for space-constrained applications.
• Input Voltage Range: The TPS2560DRCT operates over a wide input voltage range of 2.5V to 6.5V, compatible with standard USB power specifications.
• Temperature Range: It is designed to function across an industrial temperature range, ensuring reliability under varying environmental conditions.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the TPS2560DRCT is no exception. It is built to meet the rigorous standards of industrial and automotive grade components, providing a reliable solution for power distribution needs.
