Product Overview: TPS2553DRV Precision Adjustable Current-Limited Power-Distribution Switch

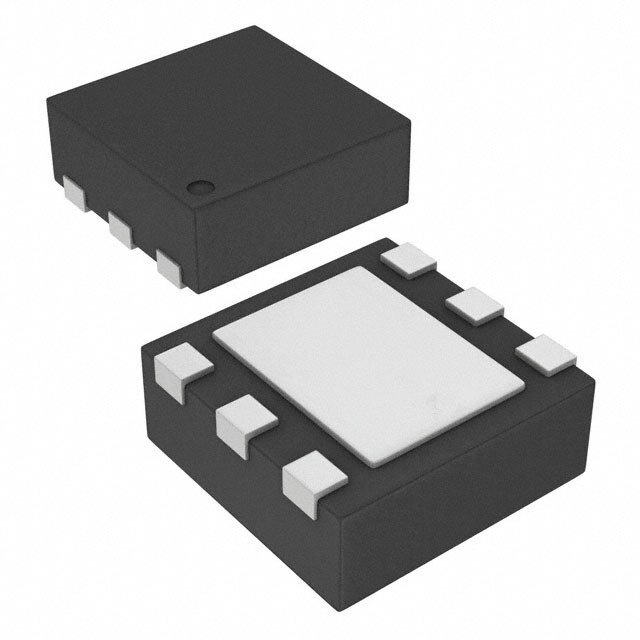

The TPS2553DRV from Texas Instruments is a state-of-the-art, precision adjustable current-limited power-distribution switch designed to provide a rich set of features for USB and other applications. This advanced component is housed in a compact 6-pin SON package, making it an ideal choice for space-constrained applications.

With an input voltage range of 2.5V to 6.5V, the TPS2553DRV is perfectly suited for USB-powered devices and is fully compliant with USB 2.0 and USB 3.0 specifications. It provides an adjustable current limit between 75 mA and 1.3 A, which allows for fine-tuning to meet specific system requirements and ensures safe operation by preventing excessive current from damaging the host device or the downstream peripherals.

The device features an accurate current-limit threshold of ±10%, which ensures reliable protection for a wide range of applications. Additionally, the TPS2553DRV includes an auto-retry feature that automatically attempts to re-enable the switch after a fault condition has been detected and cleared, reducing the need for manual intervention and improving system uptime.

One of the key advantages of the TPS2553DRV is its fast overcurrent response time, which is typically less than 2 µs. This rapid response helps to protect downstream components from potential damage caused by sudden surges in current. Moreover, the device includes thermal shutdown protection, which prevents overheating and further enhances the safety and reliability of the overall system.

The TPS2553DRV also offers a fault-reporting feature through an open-drain fault flag output, which provides system designers with immediate notification of overcurrent, overtemperature, or reverse-voltage conditions. This feature allows for quick system diagnostics and recovery actions.

In summary, the TPS2553DRV from Texas Instruments is a versatile and reliable power switch that offers precise current limiting, fast response times, and robust protection features. Its compact size and adjustable parameters make it an excellent choice for designers looking to implement safe and efficient power distribution in their USB-enabled and portable devices.
