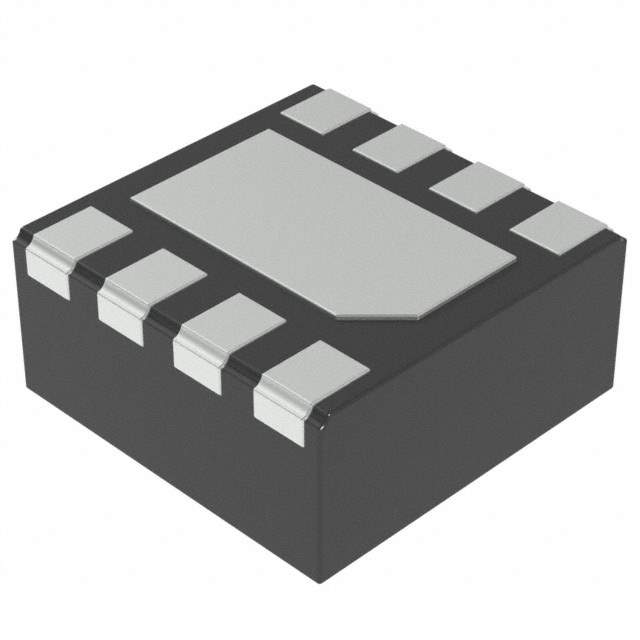

Product Overview: TPS22965NQWDSGRQ1 from Texas Instruments

The TPS22965NQWDSGRQ1 is a high-performance, feature-rich integrated load switch developed by Texas Instruments, designed to effectively manage power distribution in automotive and industrial applications. This compact and efficient device is engineered to deliver optimal performance with a minimal footprint, making it an ideal solution for systems where space is at a premium and reliability is paramount.

Key Features

• Low On-Resistance: The device boasts an ultra-low on-resistance (R<sub>ON) of just 8.7 mΩ at a 5V input, ensuring minimal voltage drop and power loss across the switch, thus enhancing overall system efficiency.
• Wide Input Voltage Range: It operates over a broad input voltage range of 1.05V to 5.5V, making it versatile for various applications and compatible with common system voltages.
• Quick Output Discharge: An integrated quick output discharge transistor provides a rapid discharge of the load capacitance when the switch is turned off, which is crucial for safety and power-down sequencing in electronic systems.
• Adjustable Rise Time: The TPS22965NQWDSGRQ1 offers an adjustable rise time to help manage inrush current, contributing to the stability of the power supply and reducing electromagnetic interference (EMI).
• Over-Current and Over-Temperature Protection: The switch includes robust protection features such as over-current and over-temperature protection, enhancing system reliability and longevity.
• Automotive Qualified: This product is qualified for automotive applications, meeting the stringent requirements of the industry, including operation under extreme temperature conditions and resistance to vibrations and shocks.

Applications

The TPS22965NQWDSGRQ1 is particularly well-suited for a wide range of automotive applications, including infotainment systems, body control modules, and advanced driver assistance systems (ADAS). Additionally, its robustness and flexibility make it an excellent choice for power distribution tasks in industrial controls, enterprise systems, and portable electronics.

In summary, the TPS22965NQWDSGRQ1 from Texas Instruments is a highly reliable and efficient solution for power management challenges in modern electronic systems. Its comprehensive feature set ensures that it can meet the needs of the most demanding applications, all within a compact package designed for easy integration into a variety of circuits.
