Product Overview: Texas Instruments TPS22945DCKR

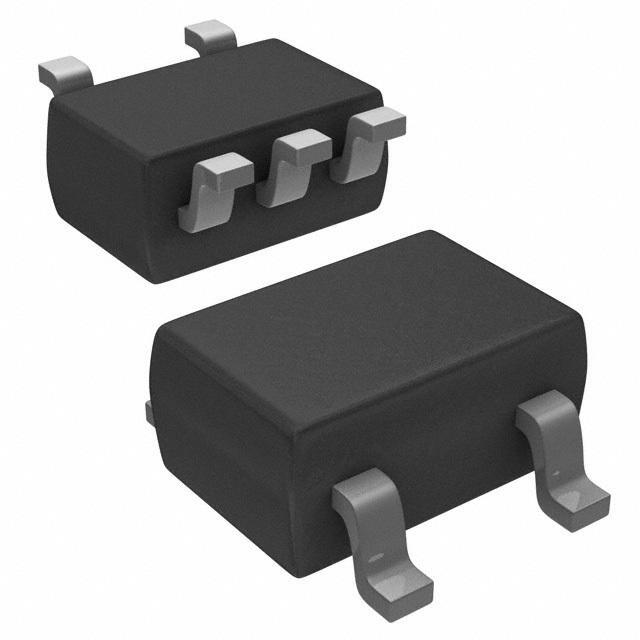

The Texas Instruments TPS22945DCKR is a compact, low-voltage, single-channel load switch designed for power management applications. It comes in a small 6-pin SC-70 package, making it a space-saving solution for portable and battery-powered devices. The TPS22945DCKR offers a wide input voltage range from 1.6V to 5.5V, which allows it to support a variety of low-power systems and applications.

Key Features

• Low On-Resistance: The device boasts a low on-resistance (R<sub>ON) of typically 105 mΩ at 5V, which minimizes power loss and improves efficiency during operation.
• Quick Output Discharge: It includes a quick output discharge (QOD) feature that ensures the output is rapidly discharged when the switch is turned off, preventing any unwanted power residue in the system.
• Controlled Slew Rate: The TPS22945DCKR is designed with a controlled slew rate to reduce inrush current, which helps in mitigating the risk of system instability during power-up.
• Over-Current Protection: The device integrates over-current protection to safeguard the system from excessive current that can lead to damage.
• Ultra-Low Quiescent Current: With an ultra-low quiescent current of just 0.5µA (typical), the TPS22945DCKR is optimized for battery-powered applications where power conservation is critical.
• Wide Operating Temperature Range: It can operate over a wide temperature range from -40°C to +85°C, making it suitable for various environmental conditions.

Applications

The TPS22945DCKR is ideal for a range of applications where efficient power distribution and management are required. It is commonly used in:

• Smartphones and Tablets
• Wearable Technology
• Portable Media Players
• Wireless Headsets and Earbuds
• Internet of Things (IoT) Devices
• Battery Management Systems

With its low power consumption, small footprint, and robust protection features, the TPS22945DCKR from Texas Instruments is an excellent choice for designers looking to optimize power efficiency and extend battery life in their portable and space-constrained applications.
