Product Overview: TPS22925BNYPHR by Texas Instruments

The TPS22925BNYPHR is a compact, high-performance integrated circuit (IC) designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This power management IC is part of TI's extensive portfolio of load switches that offer efficient power distribution and management for a wide range of applications.

The TPS22925BNYPHR features a low on-resistance, high-efficiency load switch with controlled turn-on functionality. The device operates over an input voltage range of 1.1 V to 5.5 V, making it suitable for a variety of low-voltage applications, including portable consumer electronics, battery-powered devices, and power supply distribution systems.

With a maximum continuous current of 2A, this load switch can handle significant power loads while maintaining a low thermal footprint. Its low on-resistance (typically 92 mΩ at 5V) minimizes power loss and improves overall system efficiency. Additionally, the TPS22925BNYPHR is designed with a quick output discharge (QOD) feature that ensures the output capacitor is discharged quickly once the switch is turned off, preventing any unwanted power residue in the system.

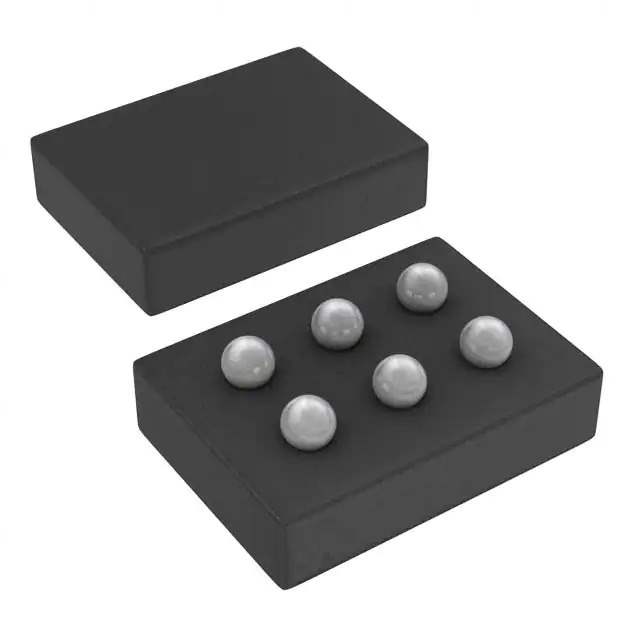

The device is housed in a compact 6-pin, 1.5mm x 1mm, wafer chip scale package (WCSP) that is optimized for space-constrained applications. Its small size and high level of integration reduce the need for external components, which simplifies design and can speed up product development.

For protection, the TPS22925BNYPHR incorporates several safety features, including over-temperature protection, which prevents the device from overheating, and under-voltage lockout (UVLO), which ensures stable operation by turning off the switch if the input voltage drops below a certain threshold.

In summary, the TPS22925BNYPHR from Texas Instruments is a highly efficient, reliable, and space-saving solution for modern power management challenges. Its robust feature set and small footprint make it an ideal choice for designers looking to optimize power distribution in their next-generation electronic devices.
