The TPS2206ADB is a sophisticated dual-slot PC Card power-interface switch designed by Texas Instruments to cater to the power management requirements of two independent PC Cards or CardBus sockets. It is an integral component for portable computing devices, ensuring efficient power distribution and protection for each card slot.

Key Features

• Integrated Switching Regulator: The TPS2206ADB comes with a built-in switching regulator that provides a regulated 3.3V or 5V to the card slots, with the ability to automatically adjust to the voltage requirements of the inserted cards.
• Dual Power Channels: Each channel can independently supply up to 1A of continuous load current, which is suitable for high-power PC Cards, including wireless modems and other high consumption peripherals.
• Short-Circuit and Overcurrent Protection: The device features robust protection mechanisms, including current limiting, short-circuit protection, and thermal shutdown to safeguard against potential damage from overcurrent conditions.
• Low Power Consumption: Designed with power efficiency in mind, the TPS2206ADB has a low quiescent current, making it an ideal choice for battery-powered applications.
• Hot Insertion Support: The power-interface switch allows for the hot insertion of cards without the need to power down the host system, providing greater convenience and user flexibility.

Applications

The TPS2206ADB is versatile and can be used in a variety of applications, including:

• Notebook Computers
• Personal Digital Assistants (PDAs)
• Portable Instrumentation
• Other Systems Utilizing PC Card Technology

Technical Specifications

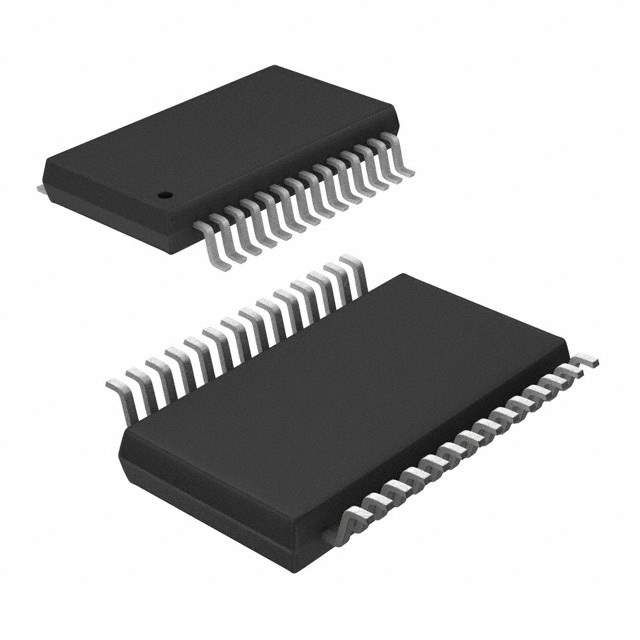

With a wide operating temperature range from -40°C to 85°C, the TPS2206ADB is designed to perform reliably in various environments. It is available in a 30-pin TSSOP (DB) package, allowing for a compact footprint on the motherboard.

Conclusion

The Texas Instruments TPS2206ADB is a high-performance, dual-slot PC Card power-interface switch that provides efficient power management and protection for PC Card applications. Its comprehensive feature set ensures safe and reliable operation, making it a top choice for designers and engineers looking for a power management solution for portable devices.
