The TPS2033D from Texas Instruments is a robust, single-channel USB power distribution switch designed for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device is particularly well-suited for USB applications by providing up to 500 mA as required by the USB 2.0 specification.

Key Features

• Current Limiting: The TPS2033D offers built-in current limiting to protect the host device from potentially damaging overcurrent conditions.
• Thermal Shutdown: With an integrated thermal shutdown feature, the device ensures protection against overheating, enhancing system safety and reliability.
• Fast Transient Response: The device is capable of handling fast transients on the bus line, ensuring stable operation under fluctuating power demands.
• Low On-Resistance: The switch features a low on-resistance of typically 70 mΩ, minimizing voltage drop and power loss.
• Under-Voltage Lockout (UVLO): The TPS2033D includes UVLO to ensure that the switch remains off when the input voltage is too low, preventing malfunction.
• Fault Reporting: A fault output flag is available to indicate overcurrent, undervoltage, or thermal shutdown conditions to the system controller.

Applications

The versatility of the TPS2033D makes it ideal for a wide range of applications, including:

• USB hubs, peripherals, and monitors
• Hot-swap supplies
• Portable consumer electronics
• Self-powered and bus-powered USB systems

Package and Availability

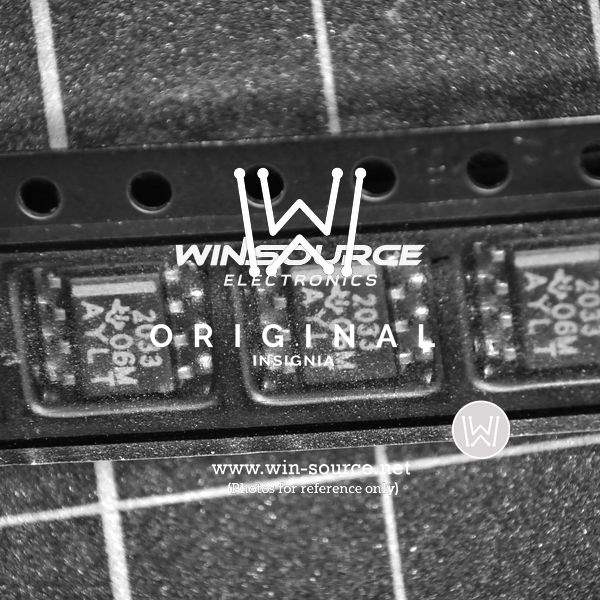

The TPS2033D is available in an 8-pin SOIC (D) package, offering a compact footprint for space-constrained applications. It is designed to operate over a temperature range of -40°C to 85°C, accommodating a broad spectrum of environmental conditions. Texas Instruments provides comprehensive technical support, including datasheets, reference designs, and application notes to facilitate the integration of the TPS2033D into your design.

For more information or to purchase the TPS2033D, please visit the Texas Instruments website or contact your local TI distributor.
