The TPIC46L03DBR is a sophisticated, high-voltage, high-current integrated circuit from Texas Instruments, designed to cater to the demanding needs of modern power management systems. This robust device is part of the TPIC family, which is renowned for its power interface circuits with serial-to-parallel shift registers and high-voltage, high-current open-drain outputs.

Featuring six channels, the TPIC46L03DBR is capable of sinking high currents with a continuous current rating of 1.5A per channel. The device operates with a supply voltage range of 4.5V to 5.5V, making it suitable for interfacing with typical microcontroller logic levels and ensuring compatibility with a wide range of applications in the industrial, automotive, and consumer electronics sectors.

The open-drain outputs of the TPIC46L03DBR are designed to handle up to 50V, which allows the device to drive a variety of inductive loads such as relays, solenoids, and stepper motors. Additionally, this integrated circuit includes built-in clamp diodes for inductive kickback protection, ensuring reliable operation and longevity of the system it is integrated into.

The shift register and latch functions enable the TPIC46L03DBR to reduce the number of I/O pins required from the controlling microprocessor. This allows for the expansion of output ports, which is particularly useful in microcontroller-based systems where I/O availability is limited. The serial interface also simplifies the cascading of multiple TPIC devices for expanded output capabilities without the need for additional microcontroller pins.

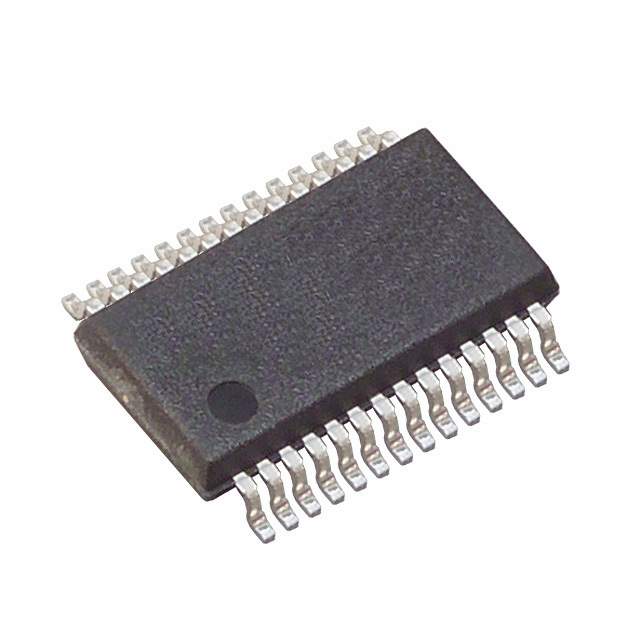

The TPIC46L03DBR comes in a DBR package, which is a surface-mount, 24-pin SSOP (Shrink Small-Outline Package) that offers a compact footprint for space-constrained applications. Its performance and packaging make it an ideal choice for driving arrays of LEDs, managing power distribution, and controlling various high-power loads with a microcontroller-based system.

Texas Instruments' commitment to quality ensures that the TPIC46L03DBR meets stringent industry standards for reliability and performance, providing a trusted solution for engineers and designers looking to create efficient and durable power management systems.
