TPD6F002QDSVRQ1 from Texas Instruments

The TPD6F002QDSVRQ1 is a state-of-the-art electrostatic discharge (ESD) protection device designed by Texas Instruments to safeguard high-speed interfaces against transient voltage spikes that can cause irreversible damage to electronic components. This device is specifically engineered for automotive applications and is AEC-Q100 qualified, ensuring reliability and performance under the harsh conditions typically found in automotive environments.

Featuring a six-channel ESD clamp circuit, the TPD6F002QDSVRQ1 offers robust protection for sensitive circuits. Each channel can withstand ESD strikes up to ±12 kV (IEC 61000-4-2), ensuring that the connected interfaces such as USB, LVDS, and other high-speed data lines are shielded from the destructive effects of ESD events. This level of protection is critical for maintaining the integrity and longevity of automotive electronics, which are increasingly reliant on sophisticated electronic systems.

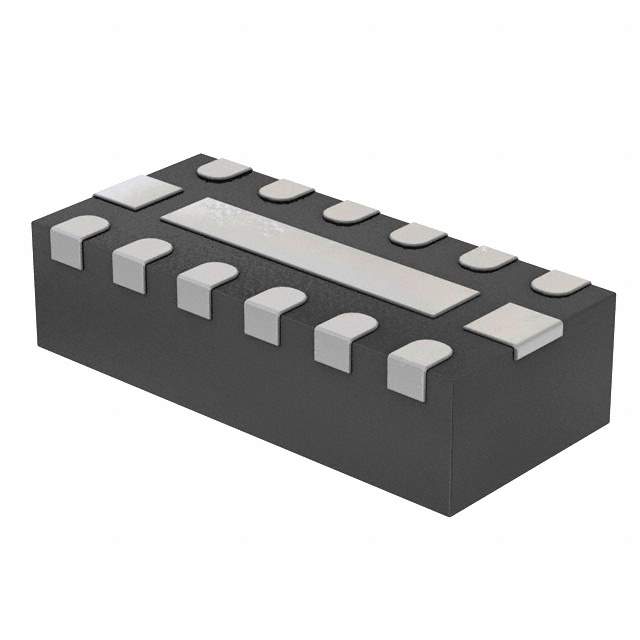

The TPD6F002QDSVRQ1 comes in a compact and space-saving 10-pin DSV (SON) package, making it an ideal choice for applications where board space is at a premium. Despite its small size, it does not compromise on performance, offering low clamping voltage and low dynamic resistance, which are essential features for protecting modern electronics that operate at high speeds and with low voltage margins.

Additionally, the device includes integrated 100 Ω termination resistors, which provide impedance matching and signal integrity enhancement. This integration helps to reduce the number of components on the PCB, simplifying the design and potentially reducing the overall cost of the system.

With its wide operating temperature range and robust ESD protection, the TPD6F002QDSVRQ1 is an excellent choice for automotive applications where reliability and performance are paramount. Whether it's infotainment systems, advanced driver assistance systems (ADAS), or other critical vehicle electronics, this ESD protection device from Texas Instruments ensures that high-speed interfaces are shielded from the unpredictable and often damaging effects of electrostatic discharge.
