The TPD6E001RSFR from Texas Instruments is a state-of-the-art, low-capacitance 6-channel Electrostatic Discharge (ESD) protection device designed to safeguard high-speed data interfaces from harmful ESD strikes. This compact and highly efficient component is an essential addition for designers looking to enhance the durability and reliability of their electronic products.

Key Features

• Integrated Protection: The TPD6E001RSFR integrates six ESD clamps into one small package, providing comprehensive protection for multiple lines while saving valuable board space.
• Low Capacitance: With ultra-low capacitance of 0.8 pF (typical), this device ensures signal integrity for high-speed data lines, making it ideal for USB 2.0, Ethernet, and other communication standards.
• IEC Compatibility: It is designed to meet IEC 61000-4-2 (Level 4) ESD protection requirements, providing robust protection against ESD events up to ±8 kV (contact discharge) and ±15 kV (air-gap discharge).
• Wide Operating Range: The device operates over a broad voltage range, accommodating various applications with ease.

Applications

The TPD6E001RSFR is versatile and can be used in a wide array of applications, including:

• Mobile Handsets
• Portable Electronics
• Computers and Peripherals
• High-Speed Data Interfaces

Package and Quality

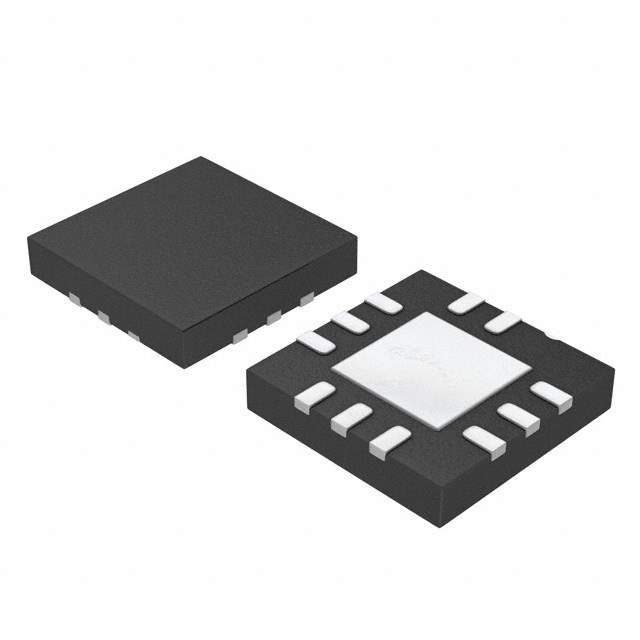

Encased in a small-footprint, lead-free, RoHS-compliant package, the TPD6E001RSFR is designed for easy integration into modern PCB designs. Texas Instruments' commitment to quality ensures that this ESD protection device meets the highest industry standards, offering a reliable solution for safeguarding sensitive electronic components.

Conclusion

Whether you're designing consumer electronics, industrial interfaces, or any application that requires robust ESD protection without compromising signal quality, the TPD6E001RSFR from Texas Instruments is an excellent choice. Its combination of low capacitance, multiple protection channels, and compliance with stringent standards makes it a top contender for designers aiming to enhance the longevity and performance of their products.
