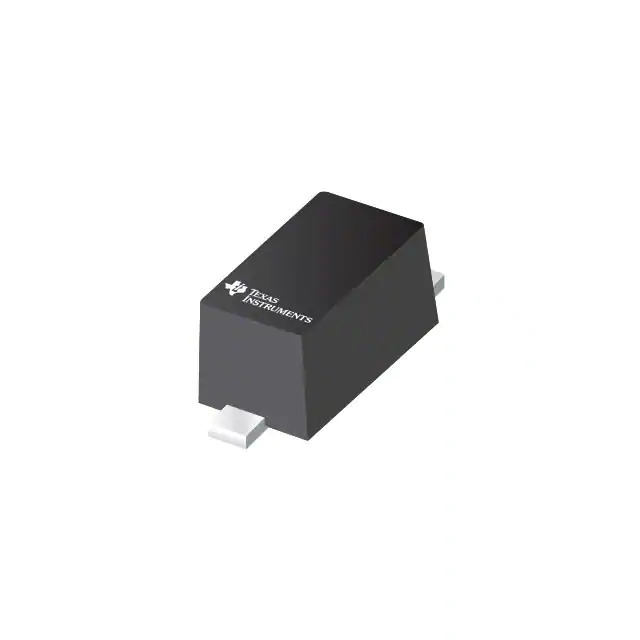

TPD1E10B06DYAR

Part No TPD1E10B06DYAR
Manufacturer Texas Instruments
Catalog TVS - Diodes
Description 12-PF, 5.5V, 30-KV ESD PROTECTIO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Texas Instruments
Series -
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 14V
Current - Peak Pulse (10/1000µs) 6A (8/20µs)
Power - Peak Pulse 90W
Power Line Protection No
Applications USB
Capacitance @ Frequency 12pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Supplier Device Package SOT-5X3
Base Product Number TPD1E10
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1380113-TPD1E10B06DYAR
Ultra Librarian 3D Model Ultra Librarian TPD1E10B06DYAR CAD Model

Description

TPD1E10B06DYAR - Texas Instruments Single-Channel ESD Protection Device

The TPD1E10B06DYAR is a highly integrated ESD protection device designed by Texas Instruments to safeguard high-speed interfaces from electrostatic discharge (ESD) and other voltage-induced transient events. This compact and efficient solution is ideal for protecting sensitive electronic components in a wide range of applications, including mobile phones, portable electronics, USB interfaces, and high-speed data lines.

Key Features

  • ESD Protection: The TPD1E10B06DYAR offers exceptional ESD protection, capable of withstanding ESD strikes up to ±10.8 kV (IEC 61000-4-2, contact discharge), ensuring the longevity and reliability of the protected device.
  • Low Capacitance: With a low input capacitance of typically 0.85 pF, this device preserves signal integrity, making it suitable for high-speed data lines without significant signal degradation.
  • Small Package: Housed in a tiny DYA package, the TPD1E10B06DYAR is space-efficient, allowing for its integration into space-constrained designs without compromising performance.
  • Wide Operating Range: It operates over a broad temperature range from -40°C to +125°C, ensuring functionality across various environmental conditions.
  • Low Leakage Current: The device features a low leakage current of maximum 100 nA at 5.5 V, contributing to the energy efficiency of the end application.

Applications

The versatility of the TPD1E10B06DYAR makes it an excellent choice for protecting a variety of interfaces, including:

  • USB 2.0 and 3.0
  • LVDS, HDMI, and MHL interfaces
  • Antenna connections
  • Keypads and buttons
  • General-purpose high-speed data lines

With its robust protection capabilities and minimal impact on signal performance, the TPD1E10B06DYAR is a reliable and essential component for designers looking to enhance the durability and ESD resilience of their electronic products. Texas Instruments' commitment to quality ensures that this ESD protection device meets the stringent requirements of modern electronic devices, providing a safeguard against the common and potentially damaging effects of electrostatic discharge.
