The TPA6205A1DRBR is a high-fidelity audio power amplifier integrated circuit produced by Texas Instruments. This compact and efficient device is designed to deliver exceptional sound quality for portable and space-constrained applications. It is particularly well-suited for mobile phones, tablets, laptops, and other personal electronics where audio performance and power efficiency are critical.

Key Features

• Output Power: The TPA6205A1DRBR can deliver 1.25W into 8Ω loads with less than 1% distortion (THD+N), ensuring loud and clear sound reproduction.
• Supply Voltage Range: It operates on a supply voltage range from 2.5V to 5.5V, which makes it versatile for use in various devices with different power requirements.
• Low Quiescent Current: The device features a low quiescent current, which helps in prolonging battery life in portable applications.
• Shutdown Control: It incorporates a shutdown control function that allows the amplifier to be turned off, further reducing power consumption when not in use.
• Thermal and Overcurrent Protection: The TPA6205A1DRBR includes built-in thermal and overcurrent protection circuits to safeguard the device under abnormal operating conditions.

Package and Quality

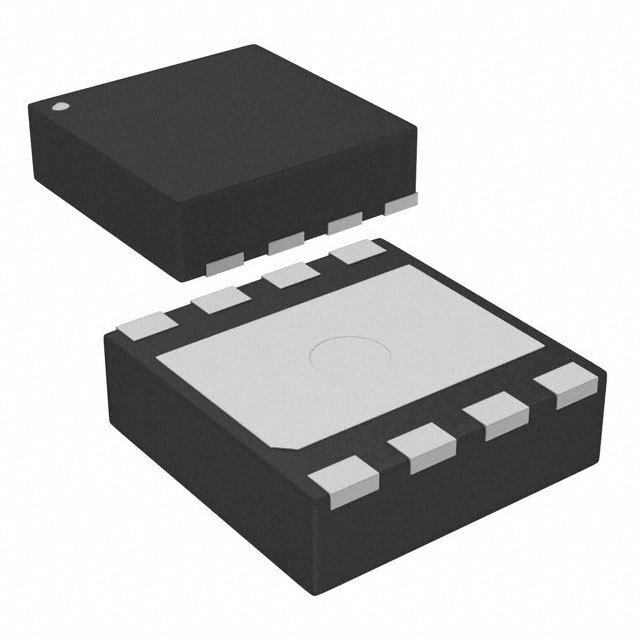

The TPA6205A1DRBR is available in a small, surface-mount SON package (DRBR), which is ideal for space-constrained designs. The package is RoHS compliant and designed for lead-free soldering, aligning with modern environmental and manufacturing standards.

Applications

Its high-quality audio amplification capabilities make it suitable for a wide range of applications, including:

• Portable and wearable electronics
• Smartphones and tablets
• Laptop and desktop computers
• Portable gaming devices
• GPS and other personal navigation devices

With its impressive audio performance, low power consumption, and compact footprint, the TPA6205A1DRBR from Texas Instruments is an excellent choice for designers looking to enhance the audio experience in their next-generation electronic products.
