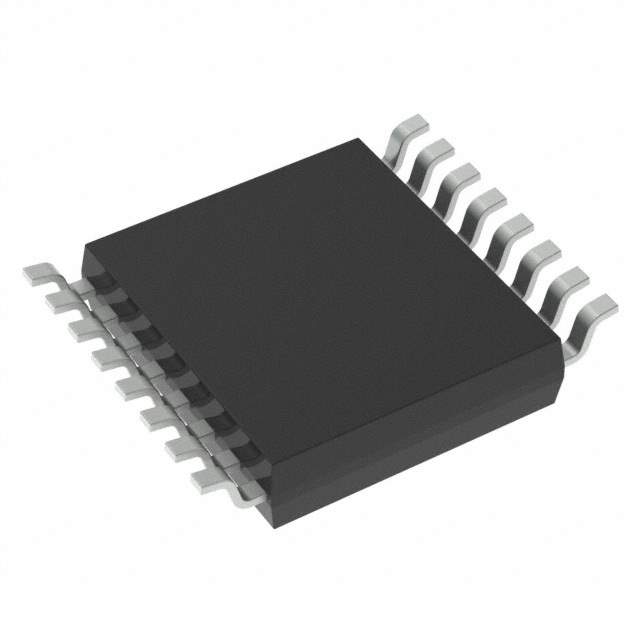

TMUX1309PWR

Name: TMUX1309PWR
Brand: Texas Instruments
SKU: 966565
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMUX1309PWR
Manufacturer	Texas Instruments
Catalog	Interface - Analog Switches, Multiplexers, Demultiplexers
Description	2-CHANNEL, 4:1 GENERAL-PURPOSE A / 2 Circuit IC Switch 4:1 195Ohm 16-TSSOP
Datasheet	TMUX1309PWR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr	Texas Instruments
Package	Tape & Reel
Switch Circuit	SP4T
Number of Circuits	2
On-State Resistance (Max)	195Ohm
Channel-to-Channel Matching (ΔRon)	7Ohm
Voltage - Supply, Single (V+)	1.62V ~ 5.5V
Voltage - Supply, Dual (V±)	1.62V ~ 5.5V
Switch Time (Ton, Toff) (Max)	32ns, 40ns
-3db Bandwidth	500MHz
Charge Injection	-6.5pC
Channel Capacitance (CS(off), CD(off))	14pF, 7pF
Current - Leakage (IS(off)) (Max)	1nA (Typ)
Crosstalk	-90dB @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP
Base Product Number	TMUX1309
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	296-TMUX1309PWRTR,296-TMUX1309PWRDKR,296-TMUX1309PWRCT
Standard Package	2,000
Win Source Part Number	966565-TMUX1309PWR
Ultra Librarian 3D Model	Ultra Librarian TMUX1309PWR CAD Model

Description

The Texas Instruments 966565-TMUX1309PWR is an analog switch, multiplexer, and demultiplexer interface IC.

Number of Circuits: 2
Switch Circuit: SP4T
On-State Resistance: 195Ohm
-3db Bandwidth: 500MHz
Voltage Range (V+): 1.62V to 5.5V
Voltage Range (V±): 1.62V to 5.5V
Package: 16-TSSOP (0.173", 4.40mm Width)
Operating Temperature: -40°C to 125°C (TA)
Standard Package: 2,000
Mounting: SMD (SMT)
Ideal Use: Applications that require an interface for analog switches, multiplexers, or demultiplexers
