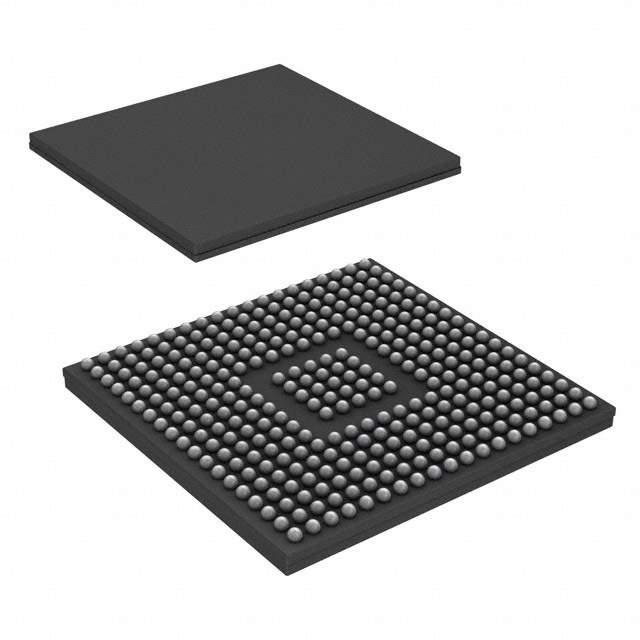

Product Overview: TMS5703137CZWTQQ1

The TMS5703137CZWTQQ1 is a highly-integrated microcontroller from Texas Instruments, designed to cater to the demanding requirements of automotive and industrial applications. This powerful microcontroller is part of the Hercules TMS570 series, which is renowned for its robust performance and safety features.

Key Features

• ARM Cortex-R4F Core: At the heart of the TMS5703137CZWTQQ1 is a 32-bit ARM Cortex-R4F CPU that operates at frequencies of up to 180 MHz, providing high-performance processing capabilities with floating-point unit support for complex computations.
• Memory: The device is equipped with 1.25MB of integrated flash memory and 192KB of data RAM, ensuring ample space for application code and data storage.
• Safety Features: Designed with functional safety in mind, it includes safety mechanisms such as Error Signaling Module (ESM), ECC (Error Correction Code) on both flash and RAM, and a built-in self-test (BIST) for CPU and memory, making it suitable for applications requiring high levels of safety integrity.
• Connectivity: A rich set of communication interfaces is provided, including CAN, LIN, Ethernet, FlexRay, and multiple serial communication ports, facilitating versatile connectivity options for various system designs.
• Temperature Range: The TMS5703137CZWTQQ1 is designed to operate over an extended temperature range, making it ideal for harsh environment conditions.
• Quality and Reliability: Texas Instruments ensures that this microcontroller meets stringent quality standards, providing high reliability for critical system functions.

Applications

This microcontroller is particularly well-suited for use in automotive applications such as advanced driver assistance systems (ADAS), electronic stability control, and electric power steering. Additionally, its robust feature set makes it an excellent choice for industrial applications that require reliable operation and real-time control, such as factory automation and motor control systems.

Supporting Tools and Software

Texas Instruments offers a comprehensive suite of tools and software to support the development of applications using the TMS5703137CZWTQQ1. These include development kits, reference designs, and software libraries that help accelerate the design process and reduce time to market.
