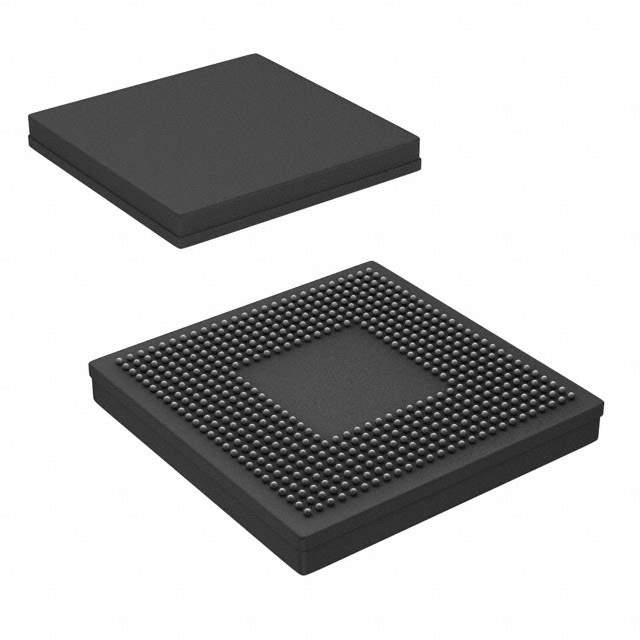

The Texas Instruments TMS32C6414EZLZA5E0 is a high-performance digital signal processor (DSP) that belongs to the TMS320C64x series. This DSP is designed to meet the intense processing demands of modern-day applications such as telecommunications, imaging, audio, and industrial control systems. Its robust architecture and advanced features make it ideal for multi-channel and multifunction tasks that require significant computational power and real-time processing.

Key Features

• High-Performance DSP Core: At the heart of the TMS32C6414EZLZA5E0 is a fixed-point DSP core that can run at a clock speed of up to 1 GHz, delivering up to 8000 MIPS (Million Instructions Per Second). This allows for high-speed data processing and real-time performance.
• Large On-Chip Memory: The device features a large internal memory, including 1MB of Level 2 (L2) cache, which can be configured as mapped RAM or cache, and 16KB of Level 1 (L1) program and data caches, enabling efficient data management and reduced latency.
• External Memory Interface: It supports a wide variety of external memory options, including DDR SDRAM, to extend the available memory for data-intensive applications.
• Advanced Peripherals: The DSP includes a host of peripherals such as Ethernet MAC, I2C, multichannel audio serial ports, and 64 general-purpose I/O pins, supporting a wide array of external devices and interfaces.
• High-Speed Interconnect: A high-bandwidth VBUS interface ensures fast data transfer between the DSP and external devices, making it suitable for applications requiring quick data throughput.
• Power Management: The TMS32C6414EZLZA5E0 incorporates power management techniques to reduce power consumption during idle or low-activity periods, which is crucial for power-sensitive applications.

Applications

The versatility of the TMS32C6414EZLZA5E0 DSP allows it to be used across various application domains. It is particularly well-suited for:

• Telecommunications infrastructure such as base stations and network switches
• Medical imaging systems like MRI and CT scanners
• High-definition audio and video processing
• Industrial control and automation systems
• Instrumentation and test equipment

Overall, the TMS32C6414EZLZA5E0 from Texas Instruments is a powerful and flexible DSP solution that offers a combination of speed, efficiency, and scalability, making it an excellent choice for engineers and developers working on high-performance embedded applications.
