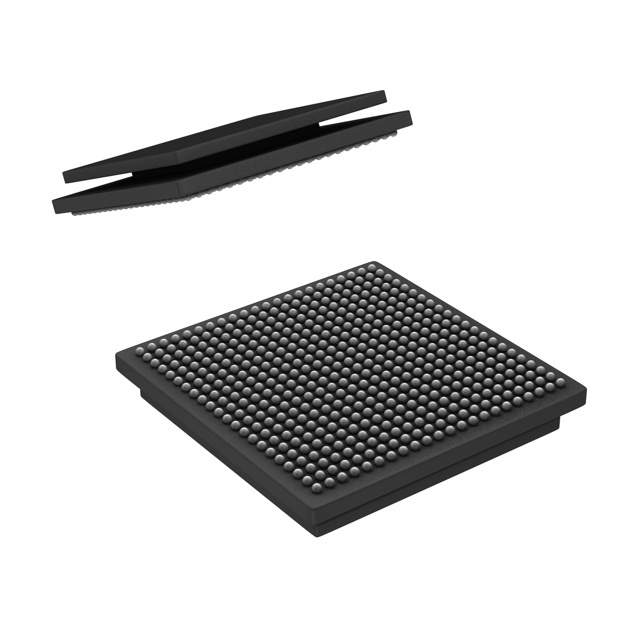

Texas Instruments TMS320DM648CUTD7 Digital Signal Processor

The TMS320DM648CUTD7 from Texas Instruments is a high-performance digital signal processor (DSP) that is part of the TMS320C64x family. This DSP is designed to meet the intense processing requirements of modern audio, video, and telecommunications applications, providing a robust solution for designers looking to integrate advanced multimedia capabilities into their products.

At the core of the TMS320DM648CUTD7 is a powerful C64x+ DSP core that operates at a frequency of up to 1 GHz, delivering up to 8000 MIPS (Million Instructions Per Second). This exceptional processing power allows for efficient handling of complex algorithms and high-speed data processing tasks. The device also features a large 1MB of on-chip L2 cache, which can be configured as mapped RAM, cache, or a combination of both, to optimize performance for specific applications.

The TMS320DM648CUTD7 supports a wide range of peripherals and interfaces, making it highly versatile for system integration. It includes a host of connectivity options such as a Gigabit Ethernet MAC, high-definition video interface (HDVICP), and multiple serial ports. These features enable the DSP to handle multiple data streams concurrently, making it ideal for applications such as digital media servers, video conferencing systems, and real-time image processing.

The device is equipped with an integrated memory controller that supports DDR2, providing fast and efficient access to external memory. Additionally, the TMS320DM648CUTD7 comes with an array of internal DMA channels that facilitate high-speed data movement without burdening the CPU, thereby enhancing overall system throughput.

Texas Instruments provides extensive support for the TMS320DM648CUTD7 with a comprehensive suite of development tools, software libraries, and reference designs. This support helps to reduce development time and allows designers to focus on creating innovative products with advanced features and capabilities.

Overall, the TMS320DM648CUTD7 is a sophisticated DSP that offers a balance of high performance, flexibility, and ease of use, making it an excellent choice for a wide array of multimedia processing applications.
