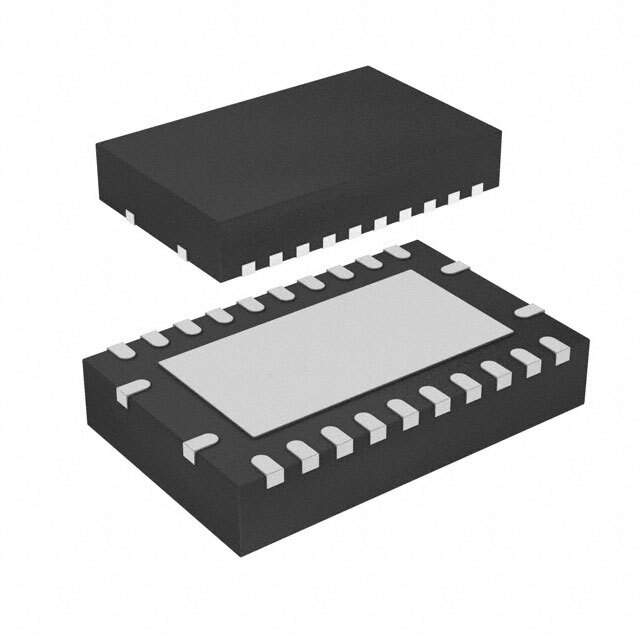

Product Overview: TLIN1024ARGYRQ1 from Texas Instruments

The TLIN1024ARGYRQ1 is a state-of-the-art automotive Local Interconnect Network (LIN) transceiver designed by Texas Instruments to meet the rigorous demands of in-vehicle networking applications. It is specifically tailored for systems requiring low-power consumption and high-performance data communication, making it an ideal solution for automotive comfort, lighting, and sensor applications.

Key Features

• Compliance: Fully compliant with LIN 2.0, 2.1, 2.2, 2.2A, and SAE J2602 standards, the TLIN1024ARGYRQ1 ensures interoperability with other LIN-compliant devices.
• Operating Voltage: The device supports a wide operating voltage range from 5.5V to 27V, accommodating the variations in automotive battery levels.
• Temperature Range: Designed to withstand extreme temperatures, it operates effectively in a range from -40°C to +125°C, suitable for harsh automotive environments.
• Low Power Mode: It includes a low-power sleep mode with a typical current draw of 5 µA, contributing to energy efficiency and battery life conservation in vehicles.
• Robustness: The transceiver is protected against battery voltage and ground shifts, with an integrated termination resistor, ensuring reliable communication under fluctuating conditions.
• Wake-Up Capability: Features a wake-up capability via LIN bus and local wake-up that allows devices to be roused from low power mode when communication is necessary.

Applications

The TLIN1024ARGYRQ1 is suitable for a wide array of automotive applications, including but not limited to:

• Body Control Modules (BCM)
• Steering Wheel Functions
• Rain/Light Sensors
• Seat Positioning Systems
• Door Modules
• HVAC Controls

Quality and Reliability

As with all Texas Instruments products, the TLIN1024ARGYRQ1 is manufactured to the highest quality standards, ensuring reliability and performance. It is AEC-Q100 qualified, meaning it has passed stringent automotive industry tests for quality and robustness. This LIN transceiver is designed to facilitate communication in advanced vehicular systems, offering designers a flexible and robust network interface solution.
