The TLC5951DAPR from Texas Instruments is a highly flexible, 24-channel, constant-current LED driver integrated circuit (IC) designed to enable the creation of sophisticated lighting solutions. It is particularly well-suited for full-color display applications, including large video displays, decorative lighting, and architectural lighting.

Key Features:

• 24 Independently Controlled Channels: Each channel can be individually adjusted, allowing for precise control over brightness and color mixing for RGB LED configurations.
• Constant-Current Sink: The TLC5951DAPR ensures a consistent current up to 120 mA per channel, providing stable and uniform brightness across all connected LEDs.
• Enhanced Spectrum PWM (ESPWM): This feature provides high color depth and fine dimming capability, which results in smooth color transitions and grayscale rendering.
• Flexible Data Interface: The device supports a wide range of data transfer rates, making it compatible with various microcontrollers and digital signal processors.
• Error Detection: Built-in error detection features such as LED open detection and thermal shutdown protect the system and extend the lifespan of the LEDs.
• Programmable Grayscale (GS) and Global Brightness Control (BC): These features allow for dynamic control of LED brightness and can be used to implement power-saving modes.

Applications:

The TLC5951DAPR is ideal for a range of applications that require high-quality, reliable LED driving capabilities. These include:

• Video Displays
• Channel Letters
• Stage Lighting
• Billboard Displays
• General Purpose LED Illumination

Package and Quality:

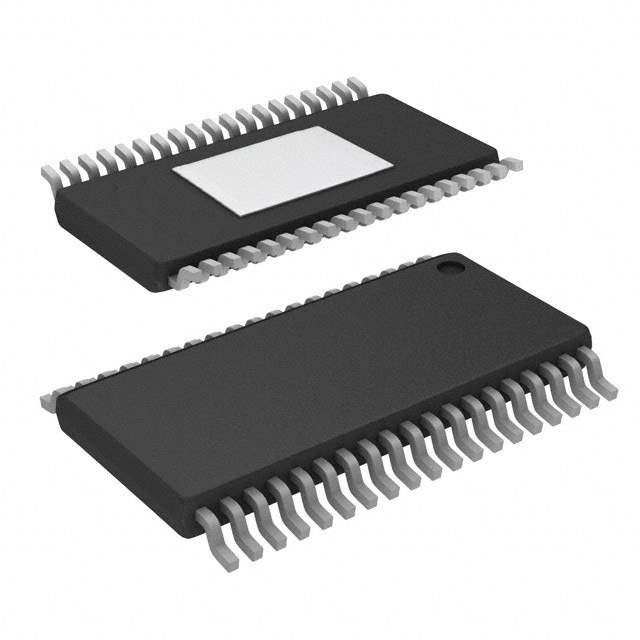

The IC comes in a HTSSOP-38 (DAP) package, which is designed for thermal efficiency and space-saving on PCBs. Texas Instruments ensures high manufacturing standards, providing robust performance and reliability.

Getting Started:

Designers can begin integrating the TLC5951DAPR into their projects by accessing Texas Instruments' extensive online resources, including datasheets, application notes, and design tools. These resources provide valuable information to help streamline the design process and bring products to market faster.
