The TAS5176DDWR, manufactured by Texas Instruments, is a high-performance, six-channel digital audio power amplifier designed to deliver exceptional sound quality for home theater systems, multi-channel audio applications, and active speaker setups. This integrated circuit is part of Texas Instruments' PurePath™ HD technology line, which is renowned for its ability to produce high-definition audio while minimizing power loss and heat generation.

Key Features

• Channels: The TAS5176DDWR boasts six independent channels, making it suitable for advanced audio systems requiring multi-channel output.
• Output Power: Each channel is capable of delivering up to 100W to a 6-ohm load, ensuring robust and dynamic audio performance.
• Efficiency: With an advanced closed-loop architecture, the device achieves greater than 90% efficiency, reducing the need for bulky heatsinks and allowing for more compact system designs.
• Audio Quality: The amplifier operates with a high signal-to-noise ratio (SNR) and low total harmonic distortion (THD), guaranteeing crystal-clear audio reproduction.
• Thermal Protection: Built-in over-temperature protection safeguards the amplifier from damage due to overheating, enhancing product reliability and lifespan.
• Integrated Feedback: The device includes an integrated feedback value, eliminating the need for an external feedback loop and simplifying the circuit design.
• Flexibility: The TAS5176DDWR is designed to be compatible with a wide range of digital audio processors and can be easily integrated into various system configurations.

Applications

The TAS5176DDWR is versatile and can be employed in a multitude of applications, including:

• Home theater receivers
• Multi-channel speaker systems
• Active speakers and soundbars
• Professional audio equipment

Package and Quality

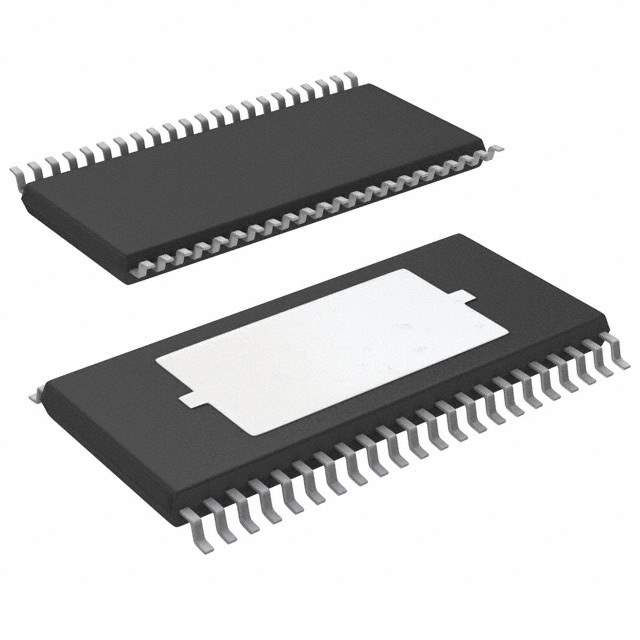

This IC comes in a 36-pin HTSSOP (DDW) package, offering a compact footprint for space-constrained applications. The TAS5176DDWR is designed to meet the rigorous standards of Texas Instruments, ensuring high reliability and performance for critical audio applications.
