The SNJ54LS157W is a high-performance, military-grade integrated circuit produced by Texas Instruments, renowned for its robustness and precision. This particular model is part of the 54LS series, designed for applications requiring a dependable solution for data selection and multiplexing.

Key Features

• Logic Type: The SNJ54LS157W is a quad 2-line to 1-line data selector/multiplexer, providing the ability to select one of two data sources for each output.

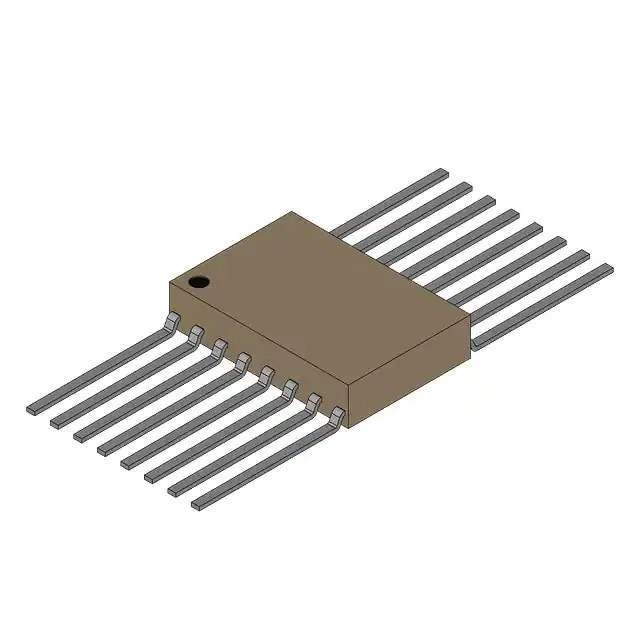

• Package: Housed in a durable ceramic flat package (CFP), the SNJ54LS157W is designed to withstand extreme temperatures and harsh environmental conditions, making it suitable for military and aerospace applications.
• Operating Temperature: This device operates over a wide temperature range, typically from -55°C to 125°C, ensuring reliability in the most demanding situations.
• Logic Family: As part of the LS (Low-power Schottky) family, it offers a good balance between speed and power consumption.
• Supply Voltage: It operates at a standard 5V power supply, which is common in digital systems.

Applications

The SNJ54LS157W is ideal for various high-reliability applications, including:

• Defense and aerospace systems
• Communication infrastructure
• Navigation and guidance systems
• Complex data processing units

Product Description

The SNJ54LS157W features four identical selectors/multiplexers that provide the capability to select between two data inputs for each output. Each multiplexer has its own select input, which determines which of the two inputs will be connected to the corresponding output. Additionally, the device includes an enable input that, when active, allows the selection to take place; when inactive, it forces the outputs to a high-impedance state, effectively isolating the outputs from the system.

With its high-speed performance and low power consumption, the SNJ54LS157W is optimized for digital signal routing, making it an essential component for systems that require reliable and efficient data handling. Texas Instruments' commitment to quality ensures that this product meets the stringent requirements of the most critical applications.
