The SN74LVC2G66DCUTG4 from Texas Instruments is a high-performance, dual single-pole double-throw (SPDT) analog switch that utilizes the benefits of the advanced LVC (Low-Voltage CMOS) technology. This versatile component is designed to operate from a 1.65 V to 5.5 V power supply, making it suitable for a wide range of applications, including battery-powered devices and mixed-voltage systems.

Key Features

• Wide Operating Voltage Range: The device can function with a supply voltage ranging from 1.65 V to 5.5 V, providing flexibility in various power environments.
• Low Power Consumption: Its LVC technology ensures low power consumption, which is critical for extending battery life in portable applications.
• High Speed: The switch offers high-speed switching performance, which is essential for applications that require fast signal processing.
• Bidirectional Signal Flow: The SN74LVC2G66DCUTG4 supports bidirectional signal flow, enabling it to be used in both digital and analog signal switching.
• Low On-State Resistance: It features a low on-state resistance, which minimizes signal attenuation and ensures high signal integrity.
• ESD Protection: The device includes robust electrostatic discharge (ESD) protection, safeguarding it against damage from static electricity.

Applications

The SN74LVC2G66DCUTG4 is ideal for a variety of applications that require reliable and efficient signal switching. It is commonly used in:

• Signal routing and multiplexing
• Audio and video switching
• Data acquisition systems
• Communication systems
• Portable electronics

Package and Quality

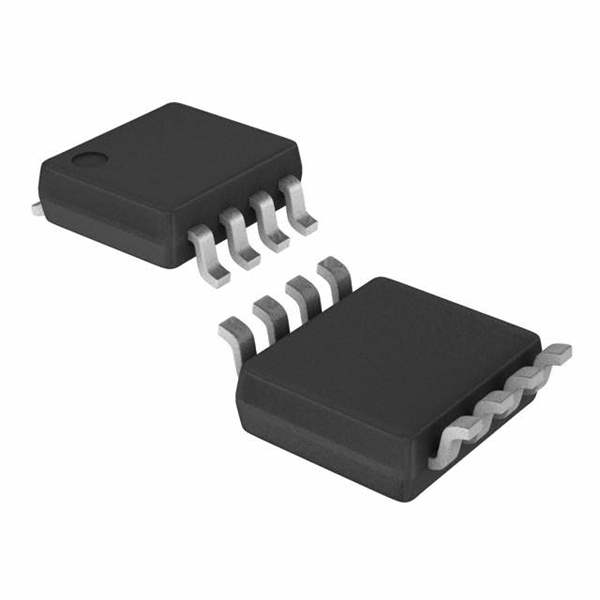

The device is available in a compact VSSOP (Very-Thin Shrink Small Outline Package) that is designed for space-constrained applications. It is also characterized for operation over the broad temperature range of -40°C to 85°C, ensuring reliable performance in diverse operating conditions. The SN74LVC2G66DCUTG4 meets or exceeds the stringent quality standards set by Texas Instruments, ensuring high reliability and performance for critical applications.
