The SN74LVC1G14DCKRG4 is a high-performance, single Schmitt-trigger inverter designed by Texas Instruments to meet the demands of modern electronics applications. This versatile component is a part of the 74LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage systems.

Key Features

• Logic Type: Schmitt-Trigger Inverter

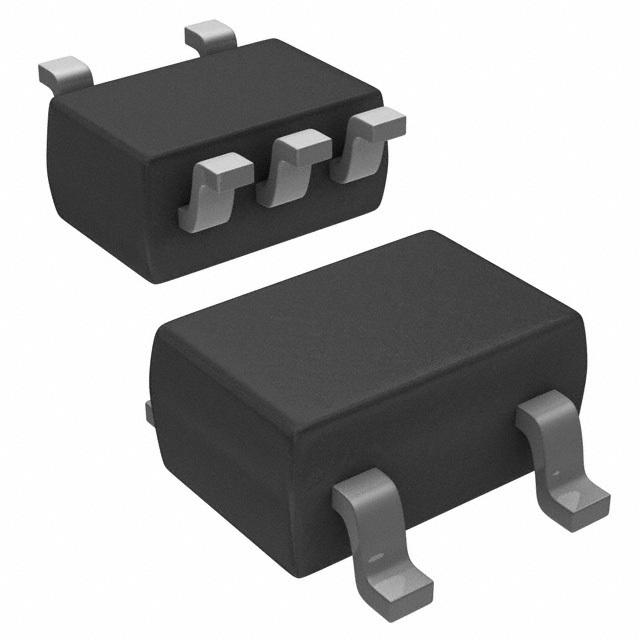

• Package / Case: SC-70-5
• Mounting Type: Surface Mount
• Output Type: Push-Pull
• Supply Voltage Range: 1.65V to 5.5V
• Operating Temperature: -40°C to +125°C
• Logic Level - Low: 0.8V (Max) at 3.3V
• Logic Level - High: 2V (Min) at 3.3V

Performance and Applications

The SN74LVC1G14DCKRG4 is optimized for low-power consumption while maintaining high-speed operation, making it ideal for battery-powered devices. Its Schmitt-trigger input provides a hysteresis effect, which enhances noise immunity and allows for slow input transition. This feature makes the inverter particularly suitable for applications with noisy environments or where slow input transitions are expected.

With its wide operating voltage range, this device can be used in systems that require interface with different logic levels, thus providing design flexibility. The SN74LVC1G14DCKRG4 is commonly used in applications such as signal conditioning, line drivers, or in the creation of oscillators due to its stable inverting characteristics.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the SN74LVC1G14DCKRG4 is no exception. It is manufactured using advanced semiconductor processes that ensure high reliability and performance consistency. The device is also RoHS compliant, minimizing the environmental impact by excluding hazardous substances from its manufacturing process.

Whether you are designing consumer electronics, industrial control systems, or complex communication devices, the SN74LVC1G14DCKRG4 by Texas Instruments provides a reliable and efficient solution for your inverting needs.
