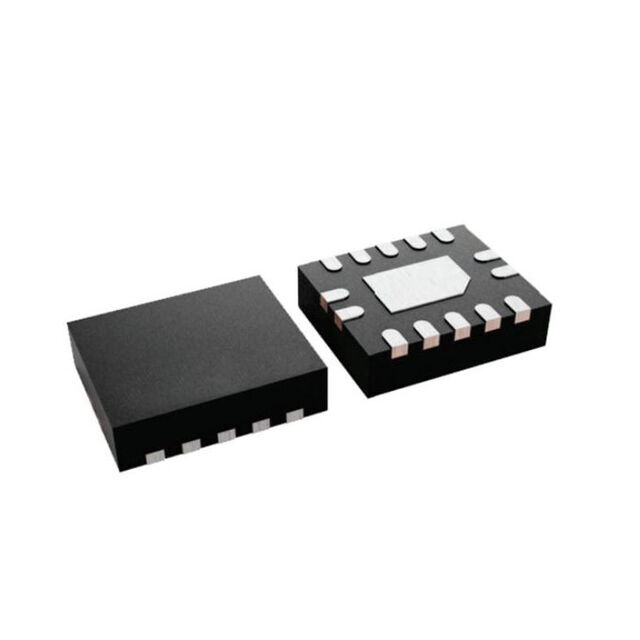

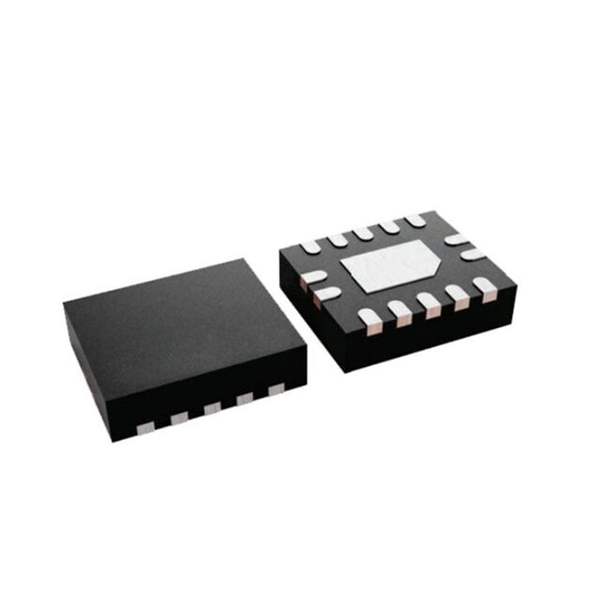

SN74HCS32BQAR Texas Instruments – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SN74HCS32BQAR

Part No SN74HCS32BQAR
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description IC GATE OR SCHMITT 4CH 2IN 14QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)LogicGates and Inverters
Mfr Texas Instruments
Series 74HCS
Part Status Active
Logic Type OR Gate
Number of Circuits 4
Number of Inputs 2
Features Schmitt Trigger Input
Voltage - Supply 2V ~ 6V
Current - Quiescent (Max) 2 μA
Current - Output High, Low 7.8mA, 7.8mA
Input Logic Level - Low 1V ~ 3V
Input Logic Level - High 1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL 12ns @ 6V, 50pF
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 14-WQFN (3x2.5)
Package / Case 14-QFN Exposed Pad
Base Product Number 74HCS32
Ultra Librarian 3D Model Ultra Librarian SN74HCS32BQAR CAD Model
