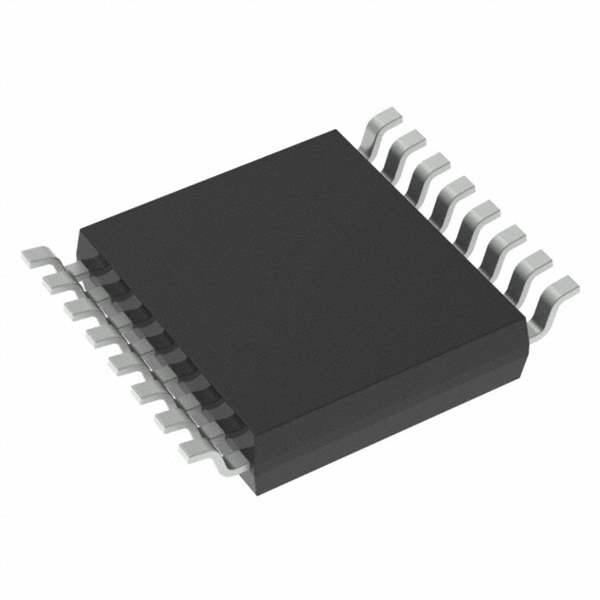

Product Overview: SN74HCS138PWR by Texas Instruments

The SN74HCS138PWR is a high-performance integrated circuit manufactured by Texas Instruments, designed to provide efficient and reliable 3-to-8 line decoding or demultiplexing. This device is particularly suitable for applications that require the selection or activation of multiple lines from a single input source, such as in address decoding for memory modules, input/output port mapping, and control line selection in various digital systems.

Key Features

• Logic Type: 3-Line to 8-Line Decoder/Demultiplexer
• Output Capability: Standard
• Supply Voltage Range: 2 V to 6 V
• Operating Temperature Range: -40°C to 85°C
• Package / Case: TSSOP-16
• Mounting Type: Surface Mount
• Logic Family: HCS

The SN74HCS138PWR is designed with advanced silicon-gate CMOS technology which ensures low power consumption while maintaining a high-speed operation. The device features a wide operating voltage range from 2 V to 6 V, making it compatible with a variety of logic levels and suitable for interfacing with both CMOS and TTL logic families.

With its robust operating temperature range of -40°C to 85°C, the SN74HCS138PWR is capable of performing reliably in a diverse range of environmental conditions, making it an ideal choice for industrial and automotive applications as well as consumer electronics.

The device comes in a slim TSSOP-16 package which is ideal for space-constrained applications. The surface-mount package allows for efficient assembly and integration into printed circuit boards (PCBs), contributing to the miniaturization of electronic systems.

Furthermore, the SN74HCS138PWR features multiple enable inputs to simplify the cascading of decoders for address expansion, and it is designed to be used with other logic components within the HCS family to build a cohesive and high-performance digital system.

In summary, the SN74HCS138PWR from Texas Instruments is a versatile and reliable component for decoding and demultiplexing applications in a wide array of electronic systems. Its low-power consumption, high-speed operation, and compatibility with various logic families make it an excellent choice for designers and engineers seeking a robust solution for complex digital tasks.
