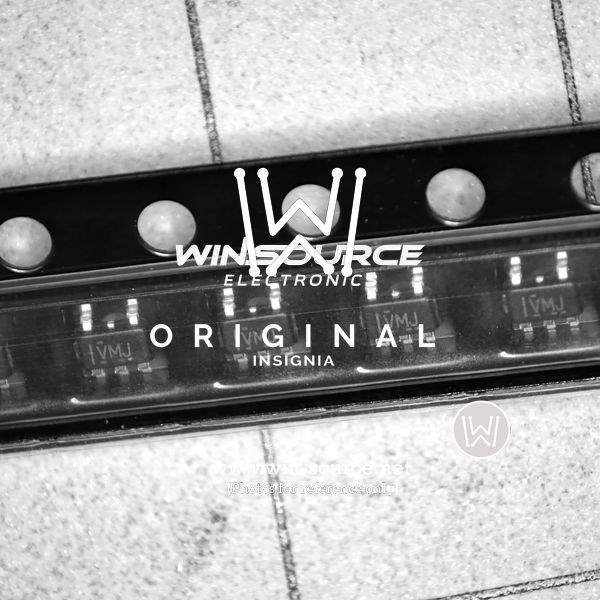

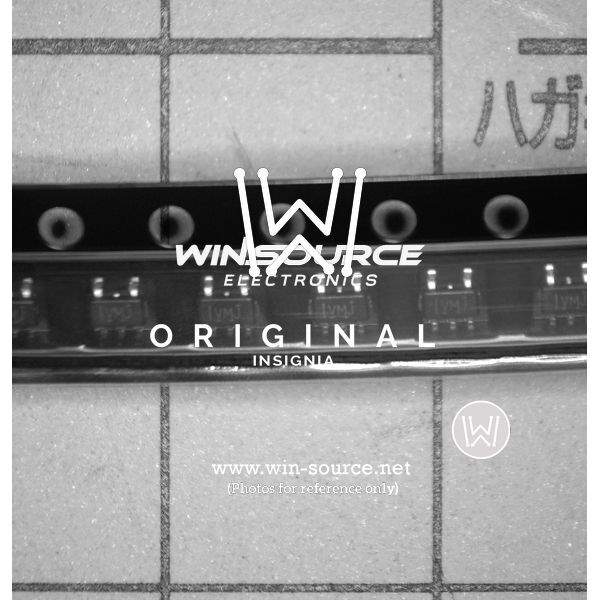

SN74CBTLV1G125DCKR Real Image SN74CBTLV1G125DCKR real image5956 SN74CBTLV1G125DCKR Real Image
Same model may have multiple batches, images only for reference.
SN74CBTLV1G125DCKR Real Image SN74CBTLV1G125DCKR real image5956 SN74CBTLV1G125DCKR Real Image
SN74CBTLV1G125DCKR Real Image SN74CBTLV1G125DCKR real image5956 SN74CBTLV1G125DCKR Real Image
Same model may have multiple batches, images only for reference.

SN74CBTLV1G125DCKR

Part No SN74CBTLV1G125DCKR
Manufacturer Texas Instruments
Catalog Logic - Signal Switches, Multiplexers, Decoders
Description IC LV SINGLE FET BUS SW SC70-5
Datasheet
SN74CBTLV1G125DCKR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Bus Switch
Independent Circuits 1
Voltage Supply Source Single Supply
Supply Voltage - Operating 2.3 V to 3.6 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SC-70-5
Win Source Part Number 030048-SN74CBTLV1G125DCKR
Family Name SN74CBTLV1G125
Introduction Date July 01, 2011
ECCN EAR99
Country of Origin China, Malaysia, Thailand
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SN74CBTLV1G125DCKR CAD Model

Description

The SN74CBTLV1G125DCKR is an advanced, high-quality single-bit, single-pole double-throw (SPDT) switch from Texas Instruments, a globally recognized leader in the electronics industry.

  • Type: Low-voltage, single-bit bus switch
  • Switch Connection: 5-ohm bi-directional switch connection between two ports
  • Supply Voltage: Single supply voltage of 5V
  • Feature: Low ON-state resistance
  • Technology: Advanced BiCMOS technology
  • Latch-Up Performance: Exceeds 100mA per JESD 78, Class II
  • ESD Protection: Exceeds JESD 22
  • Package: SC70 (DCK) package
