Product Overview: SN74AHC157PW from Texas Instruments

The SN74AHC157PW is a high-speed quadruple 2-line to 1-line data selector/multiplexer device designed by Texas Instruments, a leader in semiconductor solutions. This integrated circuit (IC) is part of the 'AHC' family, which stands for Advanced High-Speed CMOS, indicating that the device is fabricated with silicon gate CMOS technology.

Key Features

• Versatile Functionality: The SN74AHC157PW boasts a versatile architecture that allows for the selection and multiplexing of four separate data sources into a single common output line, making it ideal for data routing applications.
• High-Speed Operation: With its advanced design, the device is capable of operating at high speeds, thus ensuring minimal propagation delay times.
• Wide Operating Voltage Range: It operates over a broad voltage range of 2 V to 5.5 V, which provides compatibility with a variety of logic levels and makes it suitable for interfacing with both TTL and CMOS technologies.
• Low Power Consumption: The low power consumption of the SN74AHC157PW is a hallmark of the CMOS technology, resulting in reduced power dissipation and making it suitable for battery-operated and power-sensitive applications.
• Robust Output Drive: The IC features ±8-mA output drive at 5 V, which is robust enough to drive lines in moderate capacitive or inductive loads.

Packaging and Quality

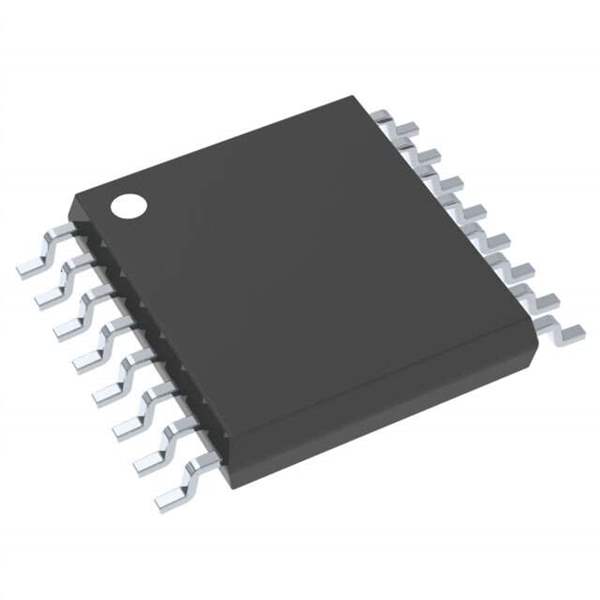

The SN74AHC157PW is offered in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, which provides a compact footprint suitable for space-constrained applications. The device is also available in tape and reel packaging, which facilitates automated assembly processes for mass production.

Applications

Due to its high-speed data selection capabilities, the SN74AHC157PW is commonly used in a wide array of electronic applications, including:

• Data multiplexing
• Signal gating
• Function selection
• Input-output expansion
• Hardware or software resource sharing

With its combination of speed, power efficiency, and versatile functionality, the SN74AHC157PW from Texas Instruments is an excellent choice for designers looking for a reliable data selector/multiplexer for their digital systems.
