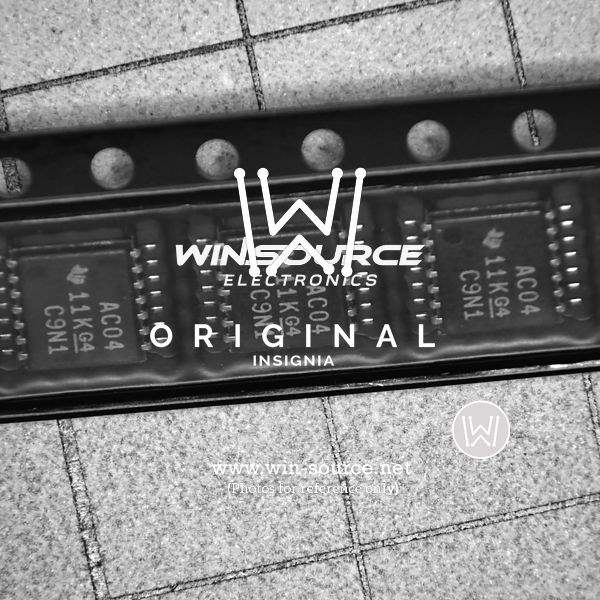

SN74AC04PWR Real Image SN74AC04PWR Real Image
Same model may have multiple batches, images only for reference.
SN74AC04PWR Real Image SN74AC04PWR Real Image
SN74AC04PWR Real Image SN74AC04PWR Real Image
Same model may have multiple batches, images only for reference.

SN74AC04PWR

Part No SN74AC04PWR
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description IC HEX INVERTER 14-TSSOP / Inverter 6-Element CMOS 14-Pin TSSOP T/R
Datasheet
SN74AC04PWR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 6
Number of Inputs 6
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 24mA, 24mA
Logic Level - Low 0.9 V to 1.65 V
Logic Level - High 2.1 V to 3.85 V
Max Propagation Delay @ V, Max CL 7ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 14-TSSOP
Dimension 14-TSSOP (0.173", 4.40mm Width)
Win Source Part Number 006445-SN74AC04PWR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SN74AC04
Introduction Date August 01, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian SN74AC04PWR CAD Model

Description

The SN74AC04PWR is a high-performance, technologically advanced product from Texas Instruments, a global semiconductor design and manufacturing company.

  • Type: Six-circuit inverter
  • Technology: CMOS
  • Voltage Range: 2V to 6V
  • Current Outputs: Up to 24mA
  • Compatibility: TTL and CMOS logic families
  • Package: Thin shrink small-outline package (TSSOP)
  • Operating Temperature: -40°C to 85°C
  • Standard Compliance: JEDEC standard no. 7A
