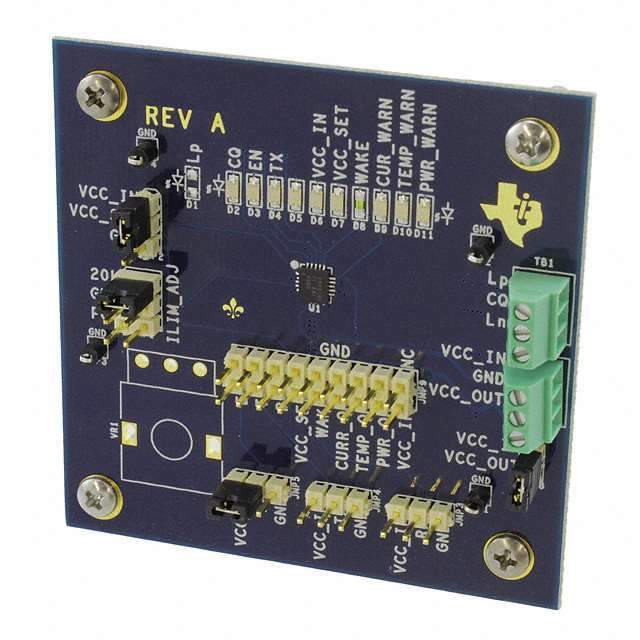

The SN65HVD101EVM from Texas Instruments is an evaluation module designed to assist developers in the rapid prototyping and testing of the SN65HVD101 IC, a robust IO-Link Master Transceiver. This evaluation module is an essential tool for engineers looking to explore the capabilities of the SN65HVD101 and integrate it into their industrial communication systems.

Key Features:

• IO-Link Interface: The SN65HVD101EVM provides a seamless interface for IO-Link communication, allowing for easy connection to IO-Link sensors and actuators.
• High-Speed Data Rates: Supporting COM1, COM2, and COM3 modes, the module is capable of data rates of 4.8 kbps, 38.4 kbps, and 230.4 kbps respectively, ensuring compatibility with a wide range of devices.
• Robust Protection: The transceiver is designed with built-in protection against faults and industrial environmental challenges, including electrostatic discharge (ESD) and electrical fast transients (EFT).
• Diagnostic Features: The EVM includes diagnostic capabilities that can help identify issues with the IO-Link communication, simplifying the troubleshooting process.
• Flexible Power Supply: The onboard voltage regulator allows for a wide range of input voltages, making it versatile for various application requirements.

Applications:

The SN65HVD101EVM is ideal for a variety of industrial applications where a reliable and robust communication interface is required. It is particularly suited for:

• Factory automation and control systems
• Process automation
• Industrial sensor and actuator networks
• DeviceNet and other industrial network standards requiring IO-Link compatibility

Package Contents:

The evaluation module package includes the SN65HVD101EVM board pre-assembled with the SN65HVD101 transceiver, as well as documentation to assist with getting started. Additional resources, such as application notes and design software, are available on the Texas Instruments website to support development.

With its comprehensive feature set and ease of use, the SN65HVD101EVM from Texas Instruments is an invaluable tool for engineers and designers looking to leverage the advantages of IO-Link communication in their industrial systems.
