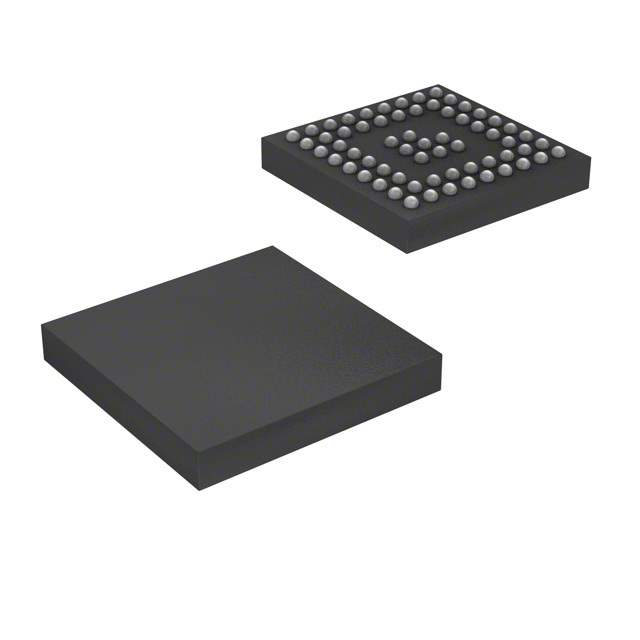

The SN65DSI85ZQE is a cutting-edge dual-channel MIPI DSI to Dual-Link LVDS bridge device designed and manufactured by Texas Instruments. This highly integrated component is engineered to facilitate the connection between a host device with a MIPI DSI interface and a display panel with a Dual-Link LVDS input, making it an ideal solution for a range of applications that require high-resolution display interfaces, such as laptops, tablets, and industrial displays.

Key Features

• MIPI DSI Interface: The device supports MIPI DSI Receiver configurations with 1, 2, 3, or 4 data lanes at up to 1.5 Gbps per lane, offering flexible design options for various display requirements.
• Dual-Link LVDS Output: It provides a high-speed Dual-Link LVDS interface which is capable of driving large display panels with high pixel counts, ensuring crisp and clear visuals.
• High-Resolution Support: The SN65DSI85ZQE can support display resolutions up to WUXGA (1920x1200) at 60Hz refresh rate, accommodating the needs of advanced display systems.
• Low Power Consumption: Designed with power efficiency in mind, the device minimizes power consumption, which is critical for battery-powered portable devices.
• Programmable: The device offers programmable features such as DSI data lane, LVDS data lane configurations, and timing parameters, allowing for a highly customizable and flexible design.

Applications

The SN65DSI85ZQE is suited for a wide range of applications due to its versatility and performance. It is particularly useful in markets that demand high-resolution display interfaces, including:

• Consumer Electronics (e.g., Laptops, Tablets)
• Automotive Infotainment Systems
• Industrial and Medical Displays
• Digital Signage and Public Information Displays

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the SN65DSI85ZQE is no exception. This product is built to meet the highest industry standards, ensuring long-term performance and stability in a variety of operating conditions.
