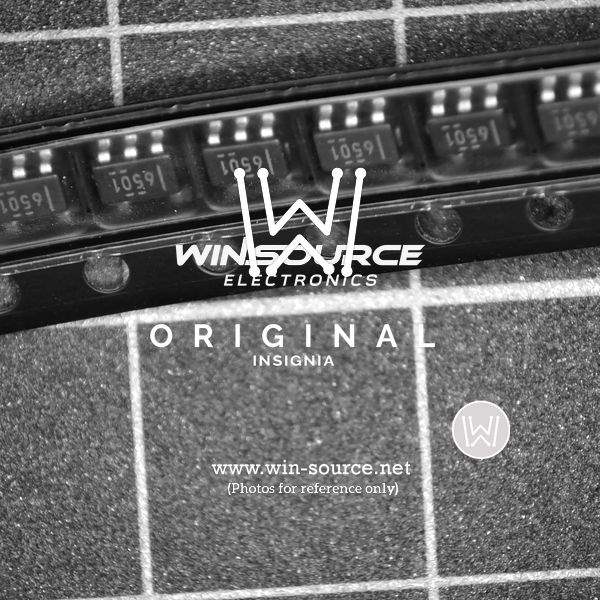

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Applications Transformer Driver
Operating Supply Current 300μA
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-23-5
Win Source Part Number 065020-SN6501DBVT
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Industrial, Automation & Process Control, Medical
Ultra Librarian 3D Model Ultra Librarian SN6501DBVT CAD Model

Description

The SN6501DBVT is a high-quality product from Texas Instruments, a globally recognized leader in the field of semiconductor technology.

  • Type: Transformer driver
  • Application: Small-form-factor, isolated power supplies in isolated interface applications
  • Operation: Operates at a fixed frequency (set by an external resistor)
  • Topology: Push-pull driver
  • Protective Features: Thermal shutdown and short-circuit protection
  • Power Supply: Single 3.3V or 5V
  • Package: Small SOT-23 package
