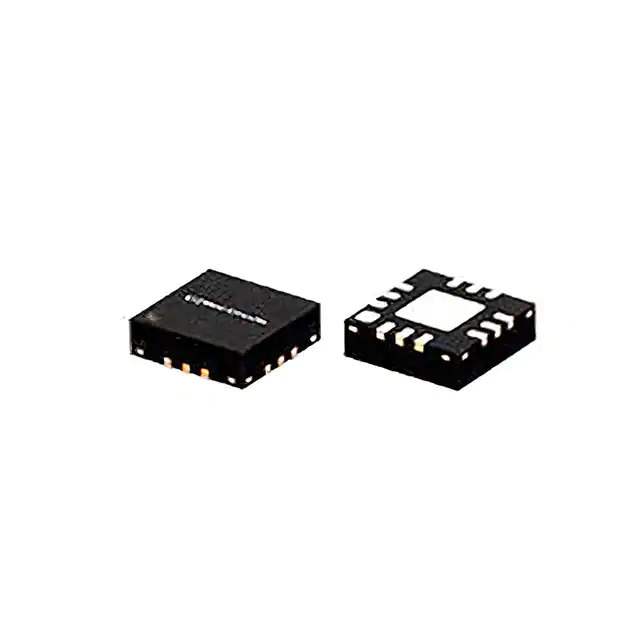

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 500MHz ~ 5GHz
P1dB 15.1dBm
Gain 14.8dB
Noise Figure 1.8dB
RF Type General Purpose
Voltage - Supply 2.7V ~ 3.3V
Current - Supply 42mA
Test Frequency 5GHz
Mounting Type Surface Mount
Package / Case 12-VQFN Exposed Pad
Supplier Device Package 12-MCLP (3x3)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 716837-TSS-53LNB3+
Ultra Librarian 3D Model Ultra Librarian TSS-53LNB3+ CAD Model

Description

The 716837-TSS-53LNB3+ is an RF amplifier designed for use in RF and wireless applications.

  • Frequency Range: 500MHz to 5GHz
  • Gain: 14.8dB
  • Noise Figure: 1.8dB
  • Supply Current: 42mA
  • Voltage Range: 2.7V to 3.3V
  • Package: 12-VQFN Exposed Pad
  • Manufacturer: Mini-Circuits
  • Packaging: Tape and Reel (1,000 pieces)
