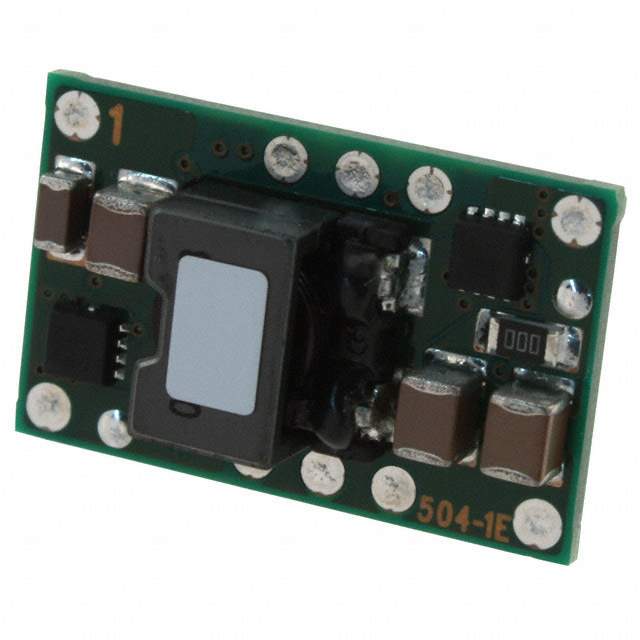

PTH12060YAST Real Image
Same model may have multiple batches, images only for reference.

PTH12060YAST

Part No PTH12060YAST
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 0.55-1.8V 18W
Datasheet
PTH12060YAST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH12060
Packaging Reel(TR)
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 0.55 ~ 1.8 V
Current - Output (Max) 10A
Applications ITE (Commercial)
Features Remote On/Off, OCP, UVLO
Mounting Style SMD/SMT
Package 10-SMD Module
Size / Dimension 0.99" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 83%
Power (Watts) - Max 18W
Win Source Part Number 138075-PTH12060YAST
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH12060YAST CAD Model

Description

The PTH12060YAST is a high-performance, non-isolated power module developed by Texas Instruments, a leading global semiconductor company.

  • Input Voltage Range: 8V to 14V
  • Output Voltage: adjustable from 0.9V to 5.5V
  • Maximum Output Current: 10A
  • Efficiency: up to 96%
  • Auto-Track sequencing: Yes
  • Operating Temperature Range: -40°C to +85°C
  • Over-temperature protection: Yes
  • Output Over-current protection: Yes
  • Input Under-voltage lockout: Yes
  • Package: compact, surface-mount package
  • Footprint: standard
  • RoHS compliant: Yes
