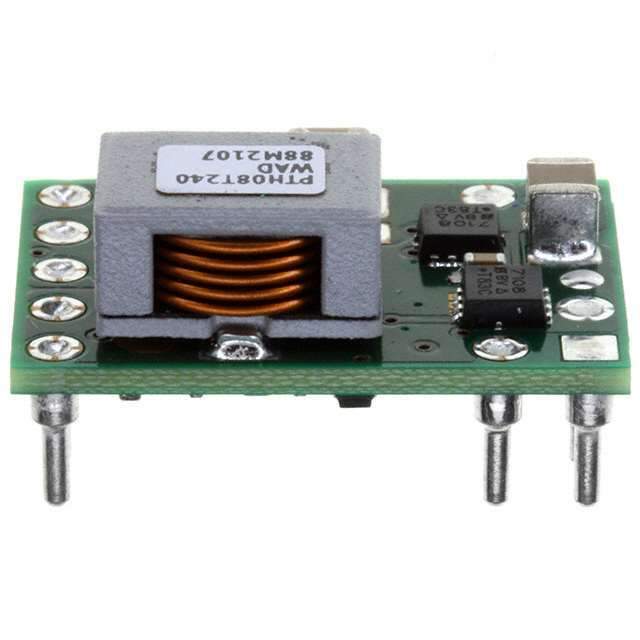

Same model may have multiple batches, images only for reference.

PTH08T241WAD

Name: PTH08T241WAD
Brand: Texas Instruments
SKU: 283854
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PTH08T241WAD
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 10A 14VIN T/H 11-DIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	49
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH08T241W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.69 ~ 5.5 V
Current - Output (Max)	10A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	11-DIP Module
Size / Dimension	0.87" L x 0.62" W x 0.34" H (22.1mm x 15.7mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	95%
Power (Watts) - Max	55W
Catalog	PTH08T240/241W Series
Win Source Part Number	082096-PTH08T241WAD
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH08T241WAD CAD Model

Alternative Products

Description

The PTH08T241WAD is a highly sophisticated, cutting-edge power module from Texas Instruments, a renowned name in the global electronics industry.

Input Voltage Range: 4.5V to 14V
Output Voltage: Adjustable from 0.69V to 3.6V
Efficiency: Up to 96%
Auto-Track sequencing: Yes
Overcurrent protection: Yes
Undervoltage lockout: Yes
Size: Compact
RoHS Compliant: Yes
