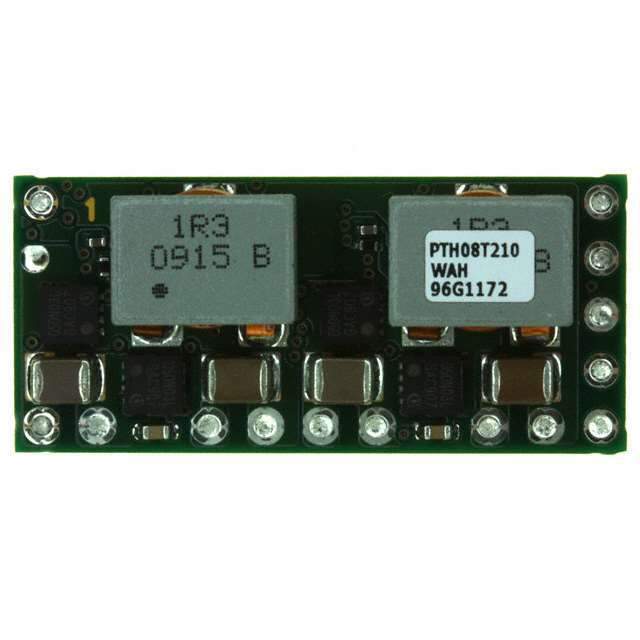

PTH08T210WAH Real Image
Same model may have multiple batches, images only for reference.

PTH08T210WAH

Part No PTH08T210WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP .7-3.6V 30A HORZ T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 35
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH08T210W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 5.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.7 ~ 3.6 V
Current - Output (Max) 25A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 14-DIP Module
Size / Dimension 1.37" L x 0.62" W x 0.34" H (34.8mm x 15.8mm x 8.5mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 93%
Power (Watts) - Max 90W
Win Source Part Number 062181-PTH08T210WAH
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH08T210WAH CAD Model

Description

The PTH08T210WAH from Texas Instruments is a highly sophisticated, high-performance, non-isolated power module that offers a wide range of features designed to provide optimal power solutions.

  • Input Voltage Range: 4.5V to 14V
  • Output Voltage: Adjustable from 0.69V to 5.5V
  • Output Current: Up to 50A
  • Efficiency: Typical 96% @ 5V output voltage
  • Auto-Track Sequencing: Yes
  • Over-Temperature Protection: Yes
  • Output Over-Current Protection: Yes
  • Under-Voltage Lockout: Yes
  • Package: Small size, surface-mount
  • Tuneable Loop: Patented
