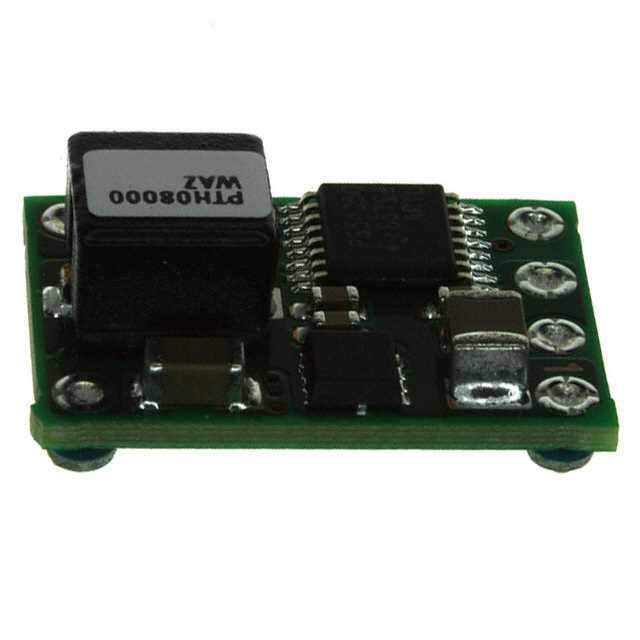

Same model may have multiple batches, images only for reference.

PTH08000WAZ

Name: PTH08000WAZ
Brand: Texas Instruments
SKU: 283834
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PTH08000WAZ
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .9-5.5V 2.25A SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	49
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH08000W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.9 ~ 5.5 V
Current - Output (Max)	2.25A
Applications	ITE (Commercial)
Features	Remote On/Off OCP OTP UVLO
Mounting Style	SMD/SMT
Package	6-SMD Module
Size / Dimension	0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	93.5%
Power (Watts) - Max	12.4W
Catalog	PTH08000W
Win Source Part Number	082092-PTH08000WAZ
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH08000WAZ CAD Model

Alternative Products

Description

The PTH08000WAZ is a high-performance product from Texas Instruments, a leading global semiconductor company renowned for its comprehensive suite of advanced technology solutions.

Adjustable Output Voltage: 0.9V to 5.5V
Input Voltage Range: 4.5V to 14V
Output Current: Up to 2.25A
Efficiency: Up to 96%
Over-Temperature Protection: Yes
Over-Current Protection: Yes
Under-Voltage Lockout: Yes
Auto-Track Sequencing: Yes
Package: Compact, surface-mount
