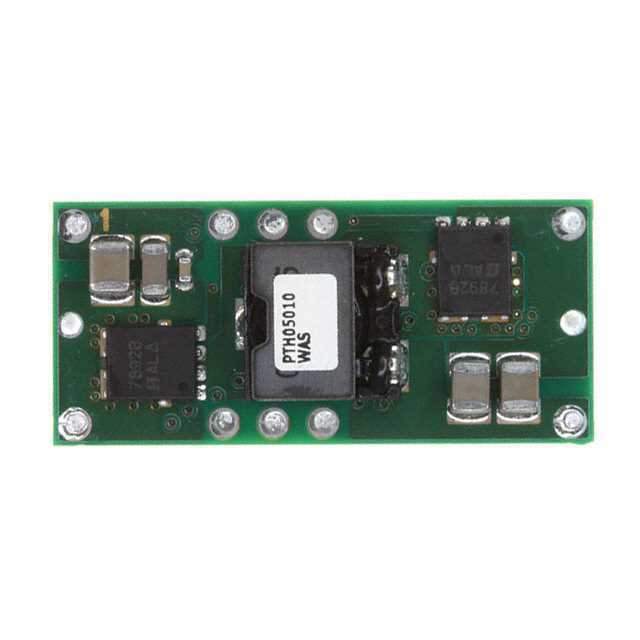

Product Overview: PTH05010WAST

The PTH05010WAST is an innovative non-isolated power module designed by Texas Instruments, renowned for its high efficiency and reliability in a variety of applications. This advanced power solution is a member of the PTH series, offering a compact and flexible option for designers requiring a high-performance power conversion module.

Key Features

• Wide Input Voltage Range: The PTH05010WAST operates over a broad input voltage range of 4.5V to 14V, making it suitable for a wide array of applications, including those that require a 12V input bus.
• Adjustable Output Voltage: This module provides an adjustable output voltage from 0.8V to 5.5V, which allows for high versatility in meeting the power needs of various downstream components.
• High Output Current: Capable of delivering up to 6A of continuous output current, it can support applications with significant power demands.
• Efficiency: The PTH05010WAST boasts an efficiency of up to 94%, ensuring minimal power loss and heat generation, which is critical for maintaining system reliability and performance.
• Power Density: Featuring a small footprint and low profile, the module provides a high power density that is ideal for space-constrained applications.
• Thermal Performance: It is designed with excellent thermal performance in mind, ensuring stable operation even at full load and elevated temperatures.

Applications

The PTH05010WAST is designed to meet the demands of a variety of applications, including but not limited to:

• Telecommunications equipment
• Data acquisition systems
• Industrial control systems
• Enterprise networking equipment
• Test and measurement devices

Quality and Support

As with all Texas Instruments products, the PTH05010WAST is manufactured to the highest quality standards and is backed by comprehensive technical support. Customers can access a wealth of resources including datasheets, application notes, and design tools to facilitate the integration of this module into their designs.
