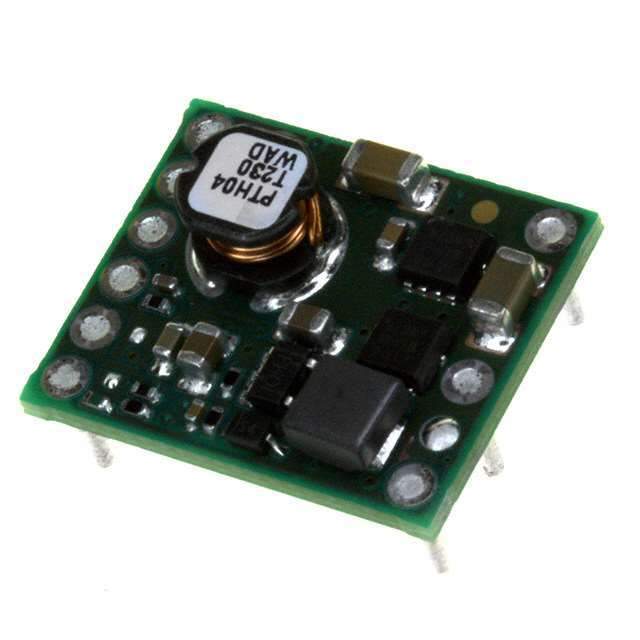

PTH04T230WAD

Name: PTH04T230WAD
Brand: Texas Instruments
SKU: 283806
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH04T230WAD
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE 6A 2.2/5.5V HZ T/H 10DIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	36
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH04T230W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.2V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.69 ~ 3.6 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	10-DIP Module
Size / Dimension	0.75" L x 0.62" W x 0.34" H (19.1mm x 15.7mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	94%
Power (Watts) - Max	21.6W
Catalog	PTH04T230W/231W
Win Source Part Number	082088-PTH04T230WAD
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH04T230WAD CAD Model

Alternative Products

Description

The PTH04T230WAD is a high-performance, 30-A rated, non-isolated power module from the renowned manufacturer, Texas Instruments.

Input Voltage Range: 4.5 to 14 Volts
Adjustable Output Voltage Range: 0.6 to 5.5 Volts
Output Current: Up to 30 Amps
Efficiency: Up to 96%
Auto-Track Sequencing: Yes
Overcurrent Protection: Yes
Over-Temperature Protection: Yes
